Abe

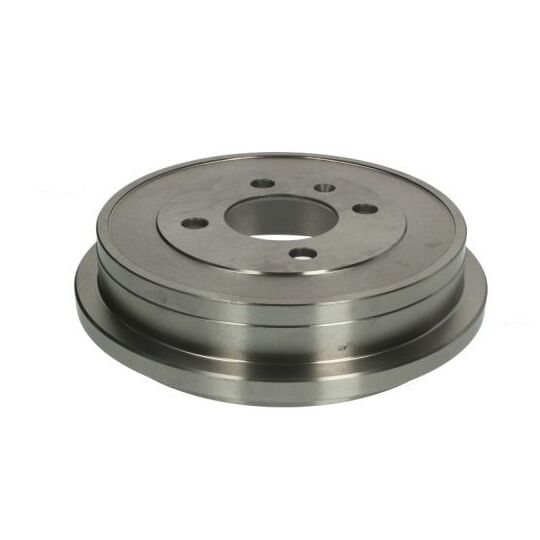

C6W015ABE Brake Drum
SKU / part number
C6W015ABE Brake Drum. Part no. C6W015ABE. Check specifications, vehicle fitment and references below.
Specifications
Centering Diameter
65 | mm
Drum diameter
200.0 mm
max. brake drum reboring dimension
201.5 mm
Inner brake drum height
50.5 mm
Number of Holes
4
Bolt Hole Circle Ø
100 mm
Bore Diameter
14 mm
Total brake drum height
59 mm
Outer brake drum diameter
240 mm
Support plate diameter
65 mm
Fitting Position
Rear Axle
Supplementary Article/Supplementary Info 2
without wheel bearing
Inner brake drum diameter
200 mm
Shipping details
Weight
4.067 Kg
Customs Code
870830
Country of Origin
China
Cross-Reference Numbers
| ATE | 24.0220-0032.1 |
|---|---|
| AUDI | 1S0609617, 6X0609617A |
| BOSCH | 0 986, 477 106 |
| CHERY | A113502031BB |
| CIFAM | 700-219 |
| DELPHI | BF410 |
| FTE | BT549 |
| LPR | 7D0441 |
| METELLI | 18-0219 |
| OMC | 100641 |
| PAGID | 62933 |
| PEX | 15.0105 |
| SEAT | 1S0609617, 6X0609617, 6X0609617A |
| SKODA | 1S0609617, 6X0609617A |
| TRW | DB4260 |
| VAG | 1S0 609, 617, 6X0 609, 617 A |
| VW | 1S0609617, 221 540, 01 17, 6X0609617, 6X0609617A, L1GD501615A, L1GD609617 |
| VW (FAW) | L1GD609617 |
| ZIMMERMANN | 600196400 |
