Ate

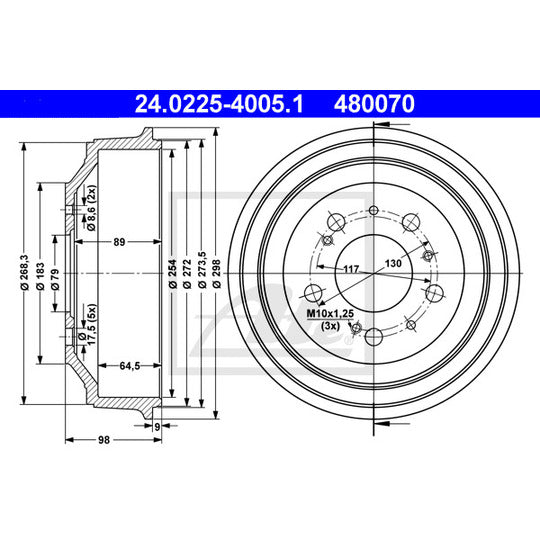

24.0225-4005.1 Brems trommel
SKU / part number
Ate 24.0225-4005.1 Brems trommel. Part no. 24-0225-4005-1. Check specifications, vehicle fitment and references below.
Specifications
Inner brake drum diameter
254.0 mm
Inner brake drum height
64.5 mm
max. brake drum reboring dimension
255.6 mm
Number of Holes
5
Bolt Hole Circle Ø
130.0 mm
Bore Diameter
17.5 mm
Total brake drum height
98.0 mm
Outer brake drum diameter
298.0 mm
Support plate diameter
79.0 mm
Test Mark
E1 90R-02D0324/1879
Trade Numbers
480070
Kryssreferansenumre
| BENDIX | 329011B |
|---|---|
| BOSCH | 0 986, 477 098 |
| BREMBO | 14.7076.10 |
| CAR | 433.076 |
| CIFAM | 700-016 |
| CITROËN | 4247 38 |
| DELPHI | BF327 |
| FEBI BILSTEIN | 10664 |
| FIAT | 1306211080 |
| FTE | BT1002 |
| HELLA | 8DT 355, 302-191 |
| HELLA PAGID | 8DT 355, 302-191 |
| JURID | 329011J |
| METELLI | 18-0016 |
| MGA | T7500 |
| MINTEX | MBD037 |
| NK | 261901 |
| OMC | 100125 |
| PAGID | 60606 |
| PEUGEOT | 4247 38 |
| PEX | 15.0007 |
| QUINTON HAZELL | 7078.00, BDR280, BTF280 |
| REMSA | 7078.00 |
| ROADHOUSE | 7078.00 |
| SEBRO | 32 114 |
| TEXTAR | 94014600, 98100 0146, 0 1 |
| TRW | DB4162 |
| VALEO | 237028 |
| ZIMMERMANN | 440.1803.00 |
