Bosch
0 986 010 970 Starter
SKU / part number
Bosch 0 986 010 970 Starter. Part no. 0-986-010-970. Check specifications, vehicle fitment and references below.

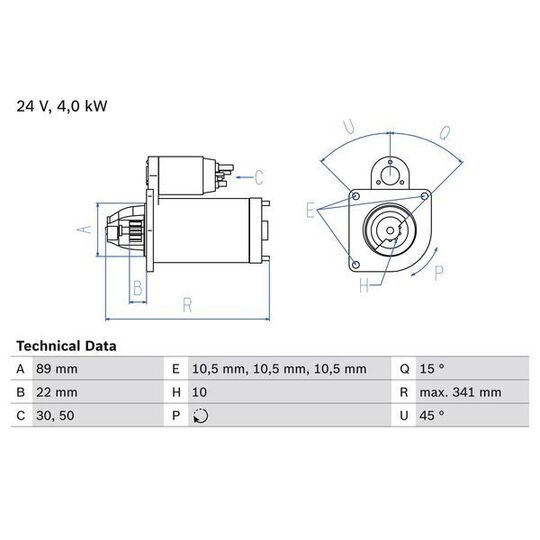

Specifications
Length
341 | mm
Voltage
24 V
Rated Power
4 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
10
Clamp
50
Clamp
30
Flange Diameter
89 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
22 mm
Starter Type
Self-supporting
Bore Diameter
10.5 mm
Bore Diameter 2
10.5 mm
Bore Ø 3
10.5 mm
Position/Degree
links
Mounting Angle
45 degrees
Jaw opening angle measurement
15 Degree
Mounting bore angle measurement
45 degree
Trade Numbers
1097
Shipping details
Weight
15.433 Kg
Customs Code
851140
Country of Origin
Germany
Cross-Reference Numbers
| BOSCH | 0 001 360 013, 0 001 360 050, 0 001 368 070, 0 001 368 304, 0 001 368 306, 0 986 010 971 |
|---|---|
| BUTEC | 860103 |
| DELCO REMY | 19024246, 19024280, DRS0970 |
| HC-PARTS | CS608 |
| HELLA | 8EA 730 178-001 |
| LUCAS ELECTRICAL | LRS00633, LRS02152, LRS2152, LRS633 |
| MAGNETI MARELLI | 943252274, MSR735 |
| MAN | 81 26201 9013, A5 00055 9254 |
| RENAULT | 00 25 841 044, 50 00 791 211, 50 01 014 221, 50 10 090 370, 50 10 090 683, 74 85 003 742 |
| SAVIEM | 5000559254 |
| VALEO | 076517, 436096, D11E122, D11E122T, D11E99, D11E99T |
