Bosch
0 986 013 720 Starter
SKU / part number
Bosch 0 986 013 720 Starter. Part no. 0-986-013-720. Check specifications, vehicle fitment and references below.

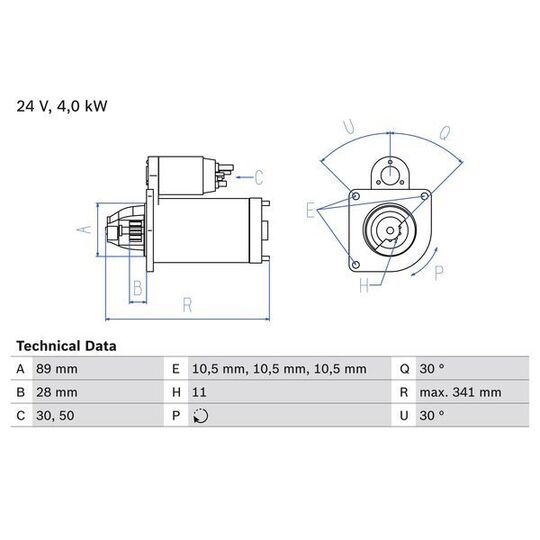

Specifications
Length
341 | mm
Voltage
24 V
Rated Power
4 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
11
Clamp
50
Clamp
30
Flange Diameter
89 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
28 mm
Starter Type
Self-supporting
Bore Diameter
10.5 mm
Bore Diameter 2
10.5 mm
Bore Ø 3
10.5 mm
Position/Degree
links
Mounting Angle
30 degrees
Jaw opening angle measurement
30 Degree
Mounting bore angle measurement
30 degree
Trade Numbers
1372
Shipping details
Weight
14.107 Kg
Customs Code
851140
Country of Origin
Germany
Cross-Reference Numbers
| BOSCH | 0 001 368 056, 0 001 368 310, 0 001 368 317, 0 986 017 870 |
|---|---|
| DELCO REMY | 19024286, DRS3720, DRS7870 |
| HC-PARTS | CS595 |
| HELLA | 8EA 726 219-001 |
| LETRIKA | 11130626, AZJ3199, IS0626 |
| LUCAS ELECTRICAL | LRS00765, LRS765 |
| MAGNETI MARELLI | 943252284, MSR729 |
| MAN | 51 26201 7085, 51 26201 7118, 51 26201 7143, 51 26201 7152, 51 26201 9118, 51 26201 9143 |
