Bosch
0 986 015 930 Starter
SKU / part number
Bosch 0 986 015 930 Starter. Part no. 0-986-015-930. Check specifications, vehicle fitment and references below.

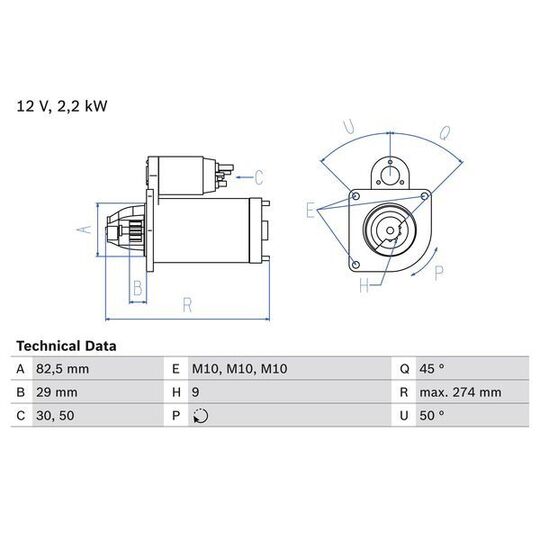

Specifications
Length
274 | mm
Voltage
12 V
Rated Power
2.2 kW
Number of mounting bores
0
Number of threaded holes
3
Number of Teeth
9
Clamp
50
Clamp
30
Flange Diameter
82.5 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
29 mm
Starter Type
Self-supporting
Thread Size
M10
Thread Size 1
M10x1.5
Thread Size 2
M10x1.5
Position/Degree
links
Mounting Angle
50 degrees
Jaw opening angle measurement
45 Degree
Mounting bore angle measurement
50 degree
Trade Numbers
1593
Shipping details
Weight
6.04 Kg
Customs Code
851140
Country of Origin
China
Cross-Reference Numbers
| BOSCH | 0 001 218 141, 0 001 218 741 |
|---|---|
| CITROËN | 5802 E3 |
| DELCO REMY | DRS5930 |
| FIAT | 46231644, 7589005, 7589151, 75891510, 7726946, 77679430 |
| HC-PARTS | CS554 |
| HELLA | 8EA 726 184-001 |
| LANCIA | 46231644, 7589005, 7589151, 75891510, 77679430 |
| LUCAS ELECTRICAL | LRS00743, LRS02074, LRS2074, LRS743 |
| MAGNETI MARELLI | 632 220 34, 632 221 38, 943222034, MSN319 |
| PEUGEOT | 5802 E3 |
| VALEO | 455626 |
