Bosch
0 986 016 300 Starter
SKU / part number
Bosch 0 986 016 300 Starter. Part no. 0-986-016-300. Check specifications, vehicle fitment and references below.

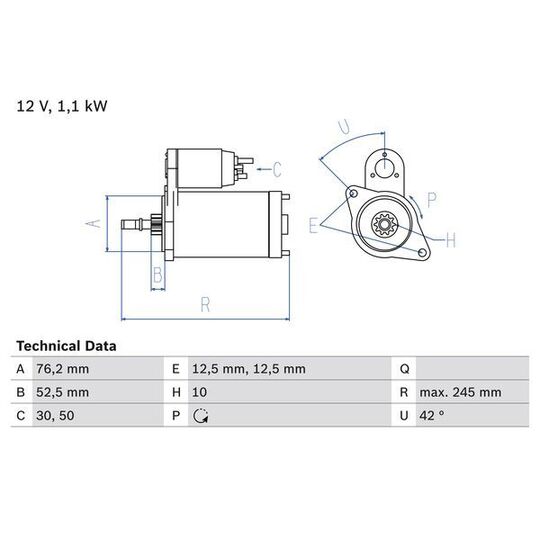

Specifications
Length
245 | mm
Voltage
12 V
Rated Power
1.1 kW
Number of mounting bores
2
Number of threaded holes
0
Number of Teeth
10
Clamp
30,50
Flange Diameter
76.2 mm
Rotation Direction
Anticlockwise rotation
Pinion Rest Position
52.5 mm
Starter Type
Floating pinion
Bore Diameter
12.5 mm
Bore Diameter 2
12.5 mm
Position/Degree
links
Mounting Angle
42 degrees
Mounting bore angle measurement
42 degree
Trade Numbers
1630
Shipping details
Weight
3.809 Kg
Customs Code
851140
Country of Origin
Germany
Cross-Reference Numbers
| AUDI | 02A 911 023 T |
|---|---|
| BOSCH | 0 001 107 022, 0 001 107 023, 0 986 016 303 |
| DELCO REMY | DRS6300 |
| HC-PARTS | CS619 |
| HELLA | 8EA 730 189-001 |
| LETRIKA | 11139416, AZE2185 |
| LUCAS ELECTRICAL | LRS00791, LRS791 |
| MAGNETI MARELLI | 943251327, MSR906 |
| SEAT | 02A 911 023 F, 02A 911 023 T |
| SKODA | 02A 911 023 T |
| VALEO | 455672 |
| VW | 02A 911 023 F, 02A 911 023 FX, 02A 911 023 T, 02A 911 023 TX |
