Bosch
0 986 016 400 Starter
SKU / part number
Bosch 0 986 016 400 Starter. Part no. 0-986-016-400. Check specifications, vehicle fitment and references below.

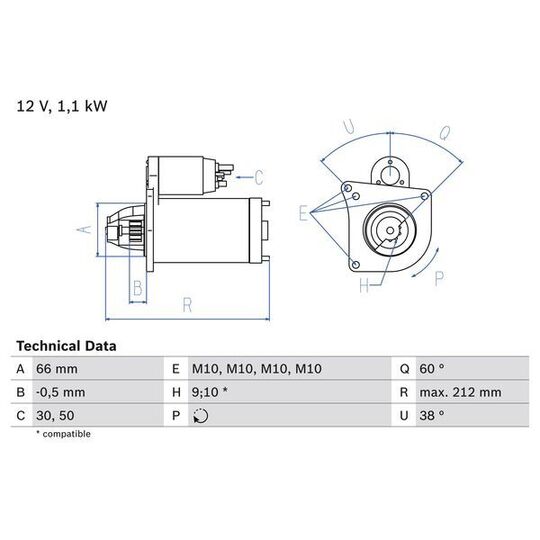

Specifications
Length
212 | mm
Voltage
12 V
Rated Power
1.1 kW
Number of mounting bores
3
Number of threaded holes
4
Number of Teeth
10
Number of Teeth
9
Clamp
50
Flange Diameter
66 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
-0.16 mm
Starter Type
Self-supporting
Thread Size
M10
Thread Size 1
M10x1.5
Thread Size 2
M10x1.5
Thread Size 3
M10x1.5
Position/Degree
links
Mounting Angle
38 degrees
Jaw opening angle measurement
60 Degree
Mounting bore angle measurement
38 degree
Trade Numbers
1640
Shipping details
Weight
3.556 Kg
Customs Code
851140
Country of Origin
Ukraine
Cross-Reference Numbers
| BOSCH | 0 001 107 036, 0 001 107 047, 0 986 016 401, 0 986 018 591 |
|---|---|
| DELCO REMY | DRS3107, DRS3119, DRS3268 |
| HC-PARTS | CS681 |
| HELLA | 8EA 730 197-001 |
| LUCAS ELECTRICAL | LRS00997, LRS997, LRT00194, LRT194 |
| MAGNETI MARELLI | 063521070470, 943251489, MSN2012, MSR671 |
| RENAULT | 77 00 105 080, 77 00 352 049, 77 00 796 488, 77 00 853 827, 77 00 854 955, 77 00 865 719, 77 00 871 057, 77 01 351 390, 77 01 351 772, 77 01 352 049, 77 01 353 827, 77 01 853 827, 77 11 134 260 |
| VALEO | 185495, 432590, 432622, 432628, 433320, 436060, 436081, 454348, 454401, 454490, 455392, 455441, 455451, 632622, D6RA133, D6RA33, D6RA46, D6RA56, D6RA6, D6RA61, ND121, ND136, ND156 |
| VOLVO | 8111701 |
