Bosch

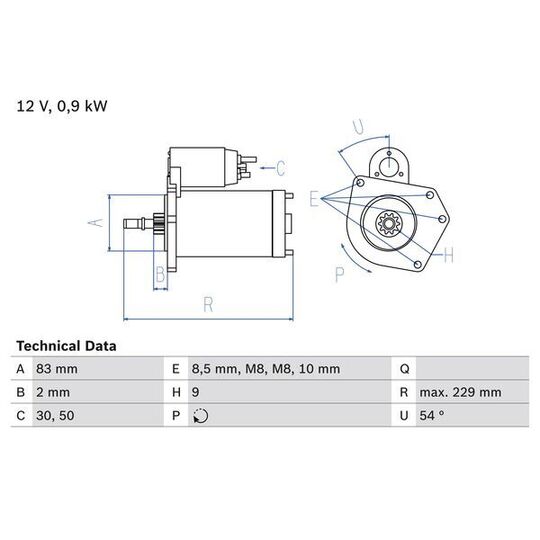

0 986 016 790 Starter
SKU / part number
Bosch 0 986 016 790 Starter. Part no. 0-986-016-790. Check specifications, vehicle fitment and references below.
Specifications
Length
229 | mm
Voltage
12 V
Rated Power
0.9 kW
Number of mounting bores
2
Number of threaded holes
2
Number of Teeth
9
Clamp
50
Clamp
30
Flange Diameter
82.5 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
1.8 mm
Starter Type
Non self-supporting
Thread Size 1
M8x1.25
Thread Size 2
M8x1.25
Bore Diameter
8.5 mm
Bore Ø 4
10 mm
Position/Degree
rechts
Mounting Angle
54 degrees
Mounting bore angle measurement
54 degree
Trade Numbers
1679
Shipping details
Weight
4.288 Kg
Customs Code
851140
Country of Origin
Ukraine
Cross-Reference Numbers
| BOSCH | 0 001 112 027, 0 001 112 028, 0 001 112 044, 0 001 112 045, 0 001 113 013, 0 001 113 014 |
|---|---|
| DELCO REMY | DRS6790 |
| HC-PARTS | CS788 |
| HELLA | 8EA 731 778-001 |
| LUCAS ELECTRICAL | LRS00891, LRS02116, LRS2116, LRS891 |
| SEAT | 036 911 023 Q, 085 911 023 J |
| VALEO | 455981 |
| VW | 036 911 023 Q, 036 911 023 QX, 085 911 023 B, 085 911 023 BX, 085 911 023 J, 085 911 023 JX |
