Bosch
0 986 016 980 Starter
SKU / part number
Bosch 0 986 016 980 Starter. Part no. 0-986-016-980. Check specifications, vehicle fitment and references below.

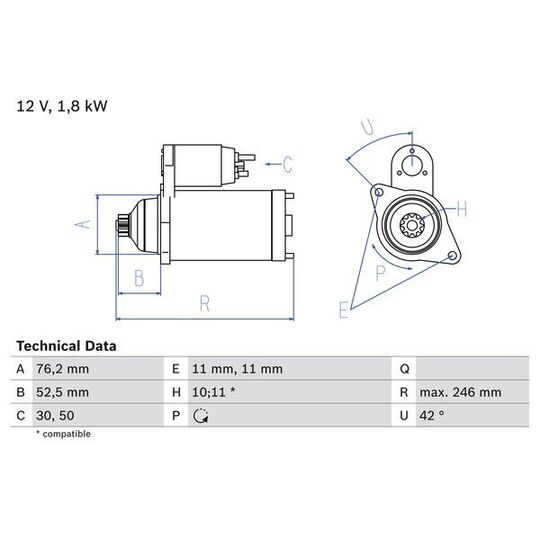

Specifications
Length
246 | mm
Voltage
12 V
Rated Power
1.8 kW
Number of mounting bores
2
Number of threaded holes
0
Number of Teeth
11
Number of Teeth
10
Clamp
50
Clamp
30
Flange Diameter
76.2 mm
Rotation Direction
Anticlockwise rotation
Pinion Rest Position
52.5 mm
Starter Type
Floating pinion
Bore Diameter
11 mm
Bore Diameter 2
11 mm
Position/Degree
links
Mounting Angle
42 degrees
Mounting bore angle measurement
42 degree
Trade Numbers
1698
Shipping details
Weight
4.49 Kg
Customs Code
851140
Country of Origin
Ukraine
Cross-Reference Numbers
| AUDI | 02A 911 024 B, 02A 911 024 D, 02A911024 |
|---|---|
| BOSCH | 0 001 124 001, 0 001 124 002, 0 001 125 007, 0 001 125 008, 0 001 125 042, 0 001 125 043, 0 986 017 460, 1 986 S00 810 |
| DELCO REMY | DRS6980 |
| HC-PARTS | CS974 |
| HELLA | 8EA 737 147-001 |
| LUCAS ELECTRICAL | LRS00977, LRS977 |
| SEAT | 02A 911 024 D |
| SKODA | 02A 911 024 B, 02A 911 024 D, 02A 911 024 G |
| VALEO | 438076, 455927, 455939, D7RS130, D7RS30 |
| VW | 02A 911 023 J, 02A 911 023 JX, 02A 911 024 B, 02A 911 024 D, 02A 911 024 G, 02A 911 024 X, 02A911024 |
