Bosch
0 986 016 990 Starter
SKU / part number
Bosch 0 986 016 990 Starter. Part no. 0-986-016-990. Check specifications, vehicle fitment and references below.

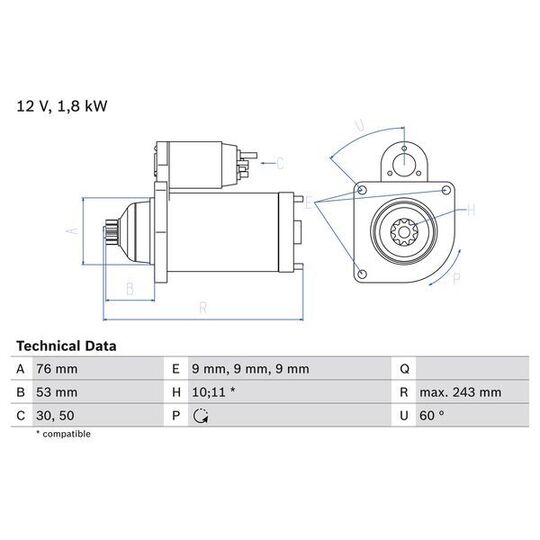

Specifications
Length
243 | mm
Voltage
12 V
Rated Power
1.8 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
11
Number of Teeth
10
Clamp
30,50
Flange Diameter
76.2 mm
Rotation Direction
Anticlockwise rotation
Pinion Rest Position
52.5 mm
Starter Type
Floating pinion
Bore Diameter
9 mm
Bore Diameter 2
9 mm
Bore Ø 3
9 mm
Position/Degree
links
Mounting Angle
60 degrees
Mounting bore angle measurement
60 degree
Trade Numbers
1699
Shipping details
Weight
4.286 Kg
Customs Code
851140
Country of Origin
Ukraine
Cross-Reference Numbers
| BOSCH | 0 001 124 005, 0 001 124 006, 0 001 125 001, 0 001 125 002, 0 001 125 011, 0 001 125 031, 0 001 125 032, 1 986 S00 808 |
|---|---|
| DELCO REMY | DRS6990 |
| HC-PARTS | CS801 |
| HELLA | 8EA 732 656-001 |
| LUCAS ELECTRICAL | LRT00133, LRT133 |
| MAGNETI MARELLI | 943251228, MSR766 |
| VALEO | 438077, 458041, D7RS131, D7RS31 |
| VW | 02B 911 023 D, 02B 911 023 DX, 02B 911 023 J, 02B 911 023 L, 02B 911 023 LX, 02B 911 023 N, 02B 911 023 NX |
