Bosch
0 986 017 110 Starter
SKU / part number
Bosch 0 986 017 110 Starter. Part no. 0-986-017-110. Check specifications, vehicle fitment and references below.

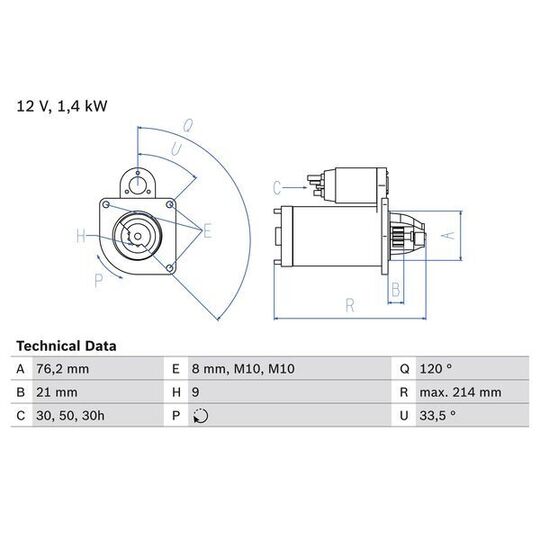

Specifications
Length
214 | mm
Voltage
12 V
Rated Power
1.2 kW
Number of mounting bores
1
Number of threaded holes
2
Number of Teeth
9
Clamp
30,30h,50
Flange Diameter
76.2 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
20.47 mm
Starter Type
Self-supporting
Thread Size 1
M10x1.5
Thread Size 2
M10x1.5
Bore Diameter
8 mm
Position/Degree
rechts
Mounting Angle
33 degrees
Jaw opening angle measurement
120 Degree
Mounting bore angle measurement
33 degree
Trade Numbers
1711
Shipping details
Weight
3.838 Kg
Customs Code
851140
Country of Origin
Ukraine
Cross-Reference Numbers
| BMW | 12 41 1 354 823, 12 41 1 438 696, 12 41 1 712 939, 12 41 1 740 373, 12 41 1 740 375, 12 41 2 344 242, 12 41 7 515 390, 12 41 7 515 391, 12 41 7 515 392, 12 41 7 515 396, 12 41 7 578 684, 7 515 392 |
|---|---|
| BOSCH | 0 001 107 442, 0 001 107 443, 0 986 017 111, 0 986 017 113, 0 986 024 573, 1 986 S00 674 |
| DENSO | 4280000670, MS4280000670 |
| HC-PARTS | CS1067, CS1078 |
| HELLA | 8EA 737 417-001, 8EA 737 497-001 |
| LUCAS ELECTRICAL | LRS02205, LRS2205, LRT00119, LRT119 |
| MAGNETI MARELLI | 063521074420, 632 935 37, MSN2019, MSN642 |
| VALEO | 458460 |
