Bosch
0 986 018 020 Starter
SKU / part number
Bosch 0 986 018 020 Starter. Part no. 0-986-018-020. Check specifications, vehicle fitment and references below.

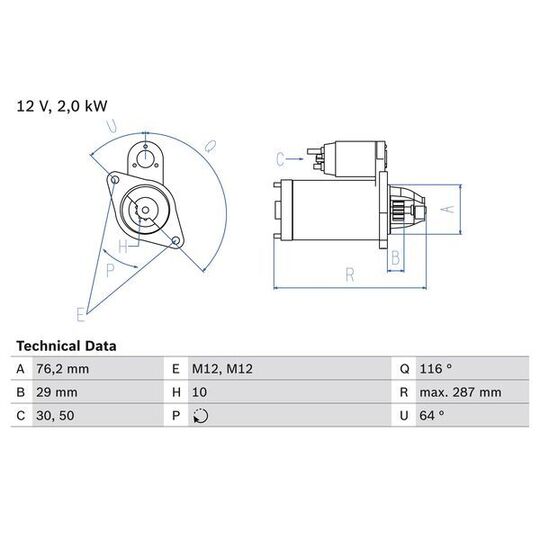

Specifications
Length
287 | mm
Voltage
12 V
Rated Power
2 kW
Number of mounting bores
0
Number of threaded holes
2
Number of Teeth
10
Clamp
50
Clamp
30
Flange Diameter
76.2 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
29 mm
Starter Type
Self-supporting
Thread Size
M12
Thread Size 1
M12x1.75
Position/Degree
links
Mounting Angle
64 degrees
Jaw opening angle measurement
116 Degree
Mounting bore angle measurement
64 degree
Trade Numbers
1802
Shipping details
Weight
4.762 Kg
Customs Code
851140
Country of Origin
Ukraine
Cross-Reference Numbers
| AUDI | 059 911 023 H |
|---|---|
| BOSCH | 0 001 109 021, 0 001 109 022, 0 001 109 066, 0 001 109 067, 1 986 S00 726, B 001 116 092 |
| DELCO REMY | DRS8020 |
| HC-PARTS | CS1114 |
| HELLA | 8EA 737 557-001 |
| KARMANN | 313904 |
| LUCAS ELECTRICAL | LRT00217, LRT217 |
| SKODA | 059 911 023 H |
| VALEO | 458220 |
| VW | 059 911 023 H, 059 911 023 HX |
