Bosch
0 986 018 360 Starter
SKU / part number
Bosch 0 986 018 360 Starter. Part no. 0-986-018-360. Check specifications, vehicle fitment and references below.

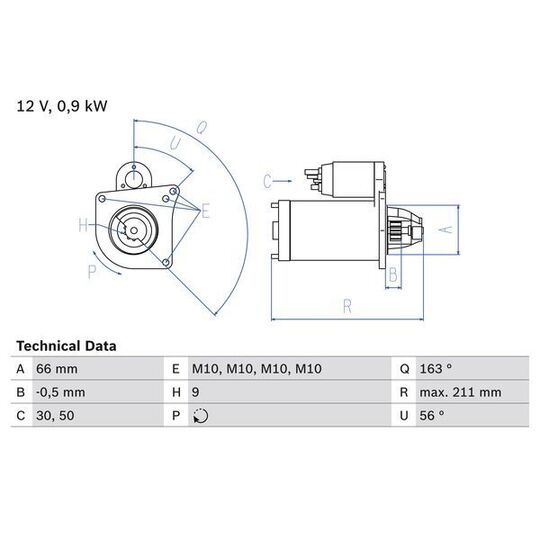

Specifications
Length
211 | mm
Voltage
12 V
Rated Power
0.9 kW
Number of mounting bores
0
Number of threaded holes
4
Number of Teeth
9
Clamp
50
Clamp
30
Flange Diameter
66 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
-0.5 mm
Starter Type
Self-supporting
Thread Size
M10
Thread Size 1
M10x1.5
Thread Size 2
M10x1.5
Thread Size 3
M10x1.5
Position/Degree
rechts
Mounting Angle
56 degrees
Jaw opening angle measurement
163 Degree
Mounting bore angle measurement
56 degree
Trade Numbers
1836
Shipping details
Weight
3.29 Kg
Customs Code
851140
Country of Origin
China
Cross-Reference Numbers
| BOSCH | 0 001 106 012, 0 001 106 017, 0 001 106 021, 0 001 106 022, 0 986 018 770, 0 986 021 030, B 001 109 104 |
|---|---|
| DELCO REMY | DRS8770 |
| HC-PARTS | CS1179 |
| HELLA | 8EA 737 763-001 |
| LUCAS ELECTRICAL | LRS01632, LRS1632, LRT00235, LRT235 |
| PROTON | 8200186144, 8200466761 |
| RENAULT | 77 00 115 294, 77 00 872 450, 77 00 875 450, 82 00 050 150, 82 00 186 144, 82 00 466 744, 82 00 466 761, 82 00 724 786, 82 00 724 817 |
| VALEO | 458189, 458263, 572925, B572925R, B585003R |
| VOLVO | 8253505 |
