Bosch
0 986 018 940 Starter
SKU / part number
Bosch 0 986 018 940 Starter. Part no. 0-986-018-940. Check specifications, vehicle fitment and references below.

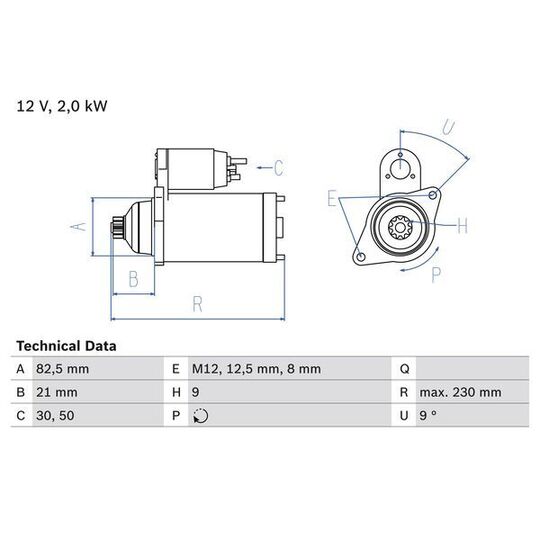

Specifications
Length
230 | mm
Voltage
12 V
Rated Power
2 kW
Number of mounting bores
2
Number of threaded holes
1
Number of Teeth
9
Clamp
50
Clamp
30
Flange Diameter
82.5 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
21 mm
Starter Type
Floating pinion
Thread Size
M12
Bore Diameter 2
12.5 mm
Bore Ø 3
8 mm
Position/Degree
rechts
Mounting Angle
9 degrees
Mounting bore angle measurement
9 degree
Trade Numbers
1894
Shipping details
Weight
4.441 Kg
Customs Code
851140
Country of Origin
China
Cross-Reference Numbers
| BOSCH | 0 001 125 507, 0 001 125 508, 0 001 125 517, 0 001 125 518, 1 986 S00 819 |
|---|---|
| DELCO REMY | DRS8940 |
| HC-PARTS | CS1187 |
| HELLA | 8EA 737 802-001 |
| LUCAS ELECTRICAL | LRS01540, LRS1540 |
| VALEO | 458538 |
| VW | 069 911 023 J, 069 911 023 JX, 069 911 023 M, 069 911 023 MX |
