Bosch
0 986 021 320 Starter
SKU / part number
Bosch 0 986 021 320 Starter. Part no. 0-986-021-320. Check specifications, vehicle fitment and references below.

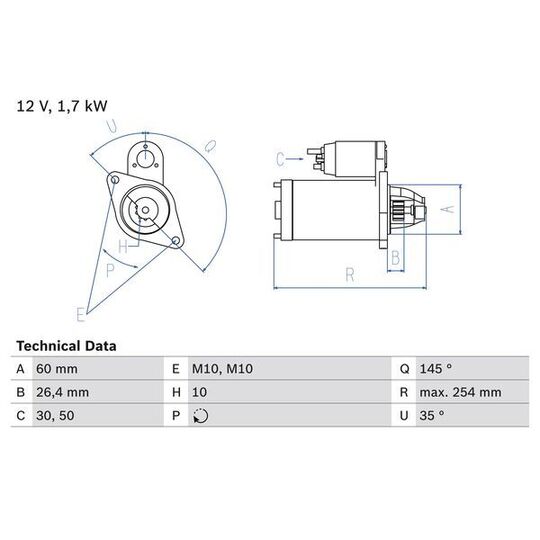

Specifications
Length
254 | mm
Voltage
12 V
Rated Power
1.7 kW
Number of mounting bores
0
Number of threaded holes
2
Number of Teeth
10
Clamp
30,50
Flange Diameter
60 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
26.4 mm
Starter Type
Self-supporting
Thread Size
M10x1.5
Thread Size 1
M10x1.5
Position/Degree
links
Mounting Angle
35 degrees
Jaw opening angle measurement
145 Degree
Mounting bore angle measurement
35 degree
Trade Numbers
2132
Shipping details
Weight
3.986 Kg
Customs Code
851140
Country of Origin
Germany
Cross-Reference Numbers
| BOSCH | 0 001 108 213, 0 001 108 214, 0 001 115 005, 0 001 115 049, 0 001 115 050, 0 001 115 070, 0 001 115 071, 0 001 115 096, 0 001 115 097, 0 001 115 119, 0 986 017 890, 0 986 017 893, 0 986 021 290, 0 986 021 293, 0 986 021 323, 0 986 021 843, 1 986 S00 774 |
|---|---|
| DELCO REMY | DRS7890 |
| HC-PARTS | CS1072, CS1562 |
| LUCAS ELECTRICAL | LRS01394, LRS1394 |
| MERCEDES-BENZ | 005 151 77 01, 005 151 77 01 80, 006 151 06 01, 006 151 06 01 80, 006 151 41 01, 006 151 41 01 80, 006 151 42 01, 006 151 42 01 80, 006 151 61 01, 006 151 61 01 80, 006 151 98 01, 112 151 00 01, 112 151 00 01 80, A 005 151 77 01, A 005 151 77 01 80, A 006 151 06 01, A 006 151 06 01 80, A 006 151 41 01, A 006 151 41 01 80, A 006 151 42 01, A 006 151 42 01 80, A 006 151 61 01, A 006 151 61 01 80, A 006 151 98 01, A 112 151 00 01, A 112 151 00 01 80 |
| STEYR | 0061510601, 1121510001 |
| VALEO | 458240, 458462, D7G14, D7G20 |
