Bosch
0 986 022 980 Starter
SKU / part number
Bosch 0 986 022 980 Starter. Part no. 0-986-022-980. Check specifications, vehicle fitment and references below.

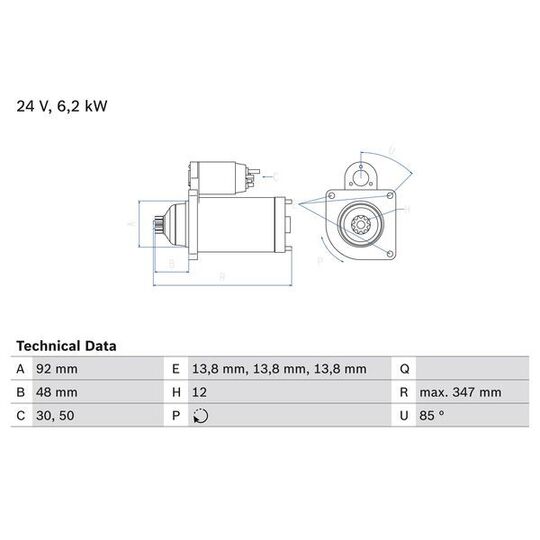

Specifications
Length
347 | mm
Voltage
24 V
Rated Power
6.2 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
11
Number of Teeth
12
Clamp
30,50
Flange Diameter
92 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
48 mm
Starter Type
Floating pinion
Bore Diameter
13.8 mm
Bore Diameter 2
13.8 mm
Bore Ø 3
13.8 mm
Position/Degree
rechts
Mounting Angle
85 degrees
Mounting bore angle measurement
85 degree
Trade Numbers
2298
Shipping details
Weight
13.445 Kg
Customs Code
851140
Country of Origin
China
Cross-Reference Numbers
| BOSCH | 0 001 330 050 |
|---|---|
| DELCO REMY | 19011501, 19024196, DRS0100 |
| HC-PARTS | CS1463 |
| LUCAS ELECTRICAL | LES0321, LRS02416 |
| MERCEDES-BENZ | 005 151 64 01, 005 151 64 01 80, 006 151 15 01, 006 151 15 01 80, 006 151 69 01, 006 151 70 01, 007 151 04 01, 007 151 46 01, A 005 151 64 01, A 005 151 64 01 80, A 006 151 15 01, A 006 151 15 01 80, A 006 151 69 01, A 006 151 70 01, A 007 151 04 01, A 007 151 46 01 |
| MITSUBA | M009T80472, M009T80473, M009T83671, M009T83672, M009T84771, M9T80472, M9T80473, M9T83671, M9T83672, M9T84771 |
| VALEO | 438280 |
