Bosch
0 986 023 270 Starter
SKU / part number
Bosch 0 986 023 270 Starter. Part no. 0-986-023-270. Check specifications, vehicle fitment and references below.

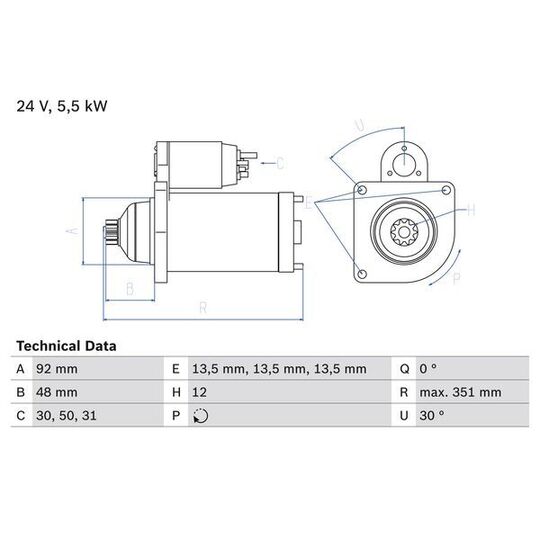

Specifications
Length
351 | mm
Voltage
24 V
Rated Power
5.5 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
12
Clamp
50
Clamp
31
Flange Diameter
92 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
48 mm
Starter Type
Floating pinion
Bore Diameter
13.5 mm
Bore Diameter 2
13.5 mm
Bore Ø 3
13.5 mm
Position/Degree
links
Mounting Angle
30 degrees
Mounting bore angle measurement
30 degree
Shipping details
Weight
10.488 Kg
Customs Code
851140
Country of Origin
China
OE Numbers
| ASTRA | 504042667 |
|---|---|
| IVECO | 504042667 |
Cross-Reference Numbers
| ASTRA | 504042667 |
|---|---|
| BOSCH | 1 986 S00 002 |
| HC-PARTS | CS1432 |
| IVECO | 504042667 |
| MITSUBA | M009T61671, M9T61671 |
