Bosch
0 986 024 660 Starter
SKU / part number
Bosch 0 986 024 660 Starter. Part no. 0-986-024-660. Check specifications, vehicle fitment and references below.

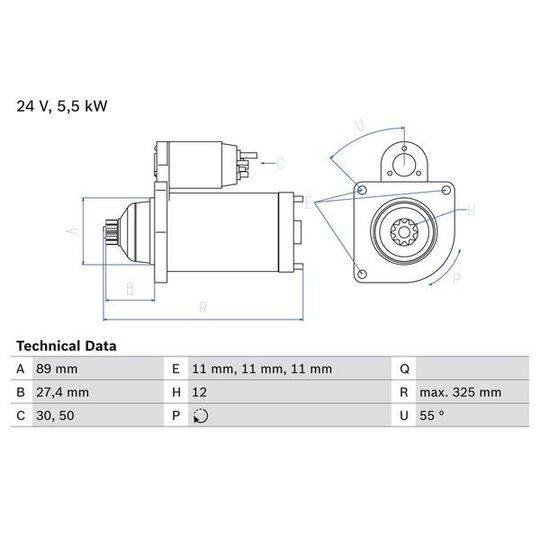

Specifications
Length
325 | mm
Voltage
24 V
Rated Power
5.5 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
12
Clamp
50
Clamp
30
Flange Diameter
89 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
27.4 mm
Starter Type
Floating pinion
Bore Diameter
11 mm
Bore Diameter 2
11 mm
Bore Ø 3
11 mm
Position/Degree
links
Mounting Angle
55 degrees
Mounting bore angle measurement
55 degree
Trade Numbers
2466
Shipping details
Weight
10.168 Kg
Customs Code
851140
Country of Origin
Germany
Cross-Reference Numbers
| BOSCH | 1 986 S10 031 |
|---|---|
| HC-PARTS | CS1496 |
| MAGIRUS-DEUTZ | 01182315, 01182759, 01183286, 01183973, 118 2315, 118 2759, 118 3286, 118 3973 |
| MITSUBA | M009T62671, M009T62671AM, M009T62671ZX, M009T62671ZZ9, M9T62671, M9T62671AM, M9T62671ZX |
| RENAULT | 50 01 868 233, 74 20 997 672 |
| VOLVO | 20796052, 20880693, 21164603, 85000749 |
