Bosch
0 986 025 170 Starter
SKU / part number
Bosch 0 986 025 170 Starter. Part no. 0-986-025-170. Check specifications, vehicle fitment and references below.

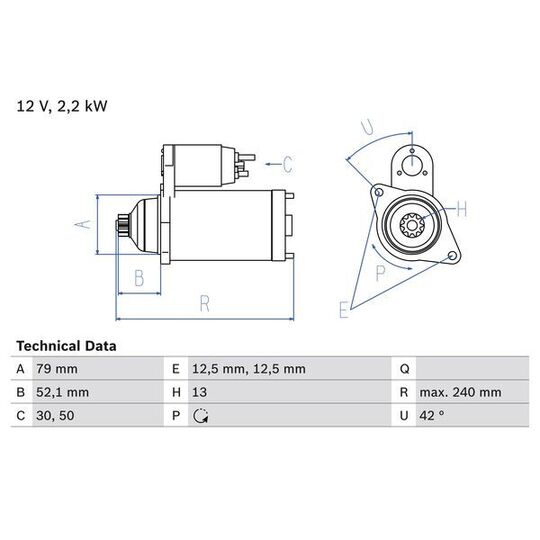

Specifications
Length
240 | mm
Voltage
12 V
Rated Power
2.2 kW
Number of mounting bores
2
Number of threaded holes
0
Number of Teeth
13
Clamp
50
Clamp
30
Flange Diameter
79 mm
Rotation Direction
Anticlockwise rotation
Pinion Rest Position
52.1 mm
Starter Type
Floating pinion
Bore Diameter
12.5 mm
Bore Diameter 2
12.5 mm
Position/Degree
links
Mounting Angle
42 degrees
Mounting bore angle measurement
42 degree
Trade Numbers
2517
Shipping details
Weight
4.355 Kg
Customs Code
851140
Country of Origin
Hungary
Cross-Reference Numbers
| AUDI | 02T 911 024 J, 02T 911 024 JX |
|---|---|
| BOSCH | 0 001 142 001, 0 001 142 002, 1 986 S00 849 |
| SEAT | 02T 911 024 J, 02T 911 024 JX |
| SKODA | 02T 911 024 J, 02T 911 024 JX |
| VW | 02T 911 024 J, 02T 911 024 JX |
