Bosch
0 986 025 450 Starter
SKU / part number
Bosch 0 986 025 450 Starter. Part no. 0-986-025-450. Check specifications, vehicle fitment and references below.

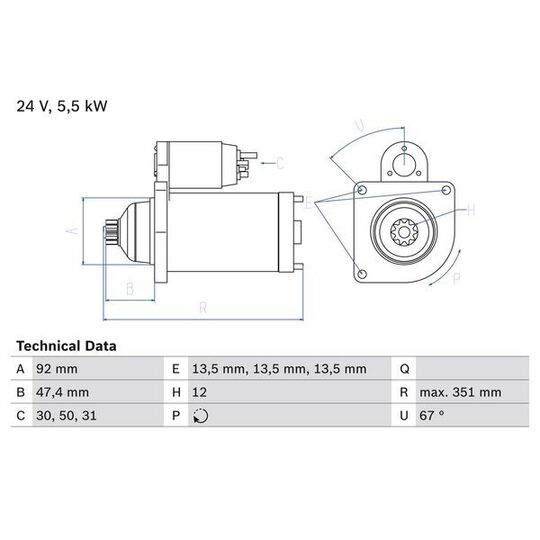

Specifications
Length
351 | mm
Voltage
24 V
Rated Power
5.5 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
12
Clamp
50
Clamp
31
Flange Diameter
92 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
47.4 mm
Starter Type
Floating pinion
Bore Diameter
13.5 mm
Bore Diameter 2
13.5 mm
Bore Ø 3
13.5 mm
Position/Degree
links
Mounting Angle
67 degrees
Mounting bore angle measurement
67 degree
Trade Numbers
2545
Shipping details
Weight
9.85 Kg
Customs Code
851140
Country of Origin
Ukraine
Cross-Reference Numbers
| BOSCH | 1 986 S00 003, 1 986 S10 068 |
|---|---|
| DELCO REMY | DRS0109, DRS0109N |
| HC-PARTS | CS1388, CS1472 |
| LUCAS ELECTRICAL | 02274 |
| METAL LEVE | MS 778 |
| MITSUBA | M009T61171, M009T61171ZA, M009T64171, M009T64171ZT, M9T61171, M9T61171ZA, M9T64171, M9T64171ZT |
| RENAULT | 50 01 866 293 |
| VALEO | 438235 |
| VOLVO | 20430564, 20430565, 20431073, 20891242, 208912420, 22804737, 71632125, 85000087, 85000677, 850006770, 85021174, 85021178, 85021181 |
