Bosch

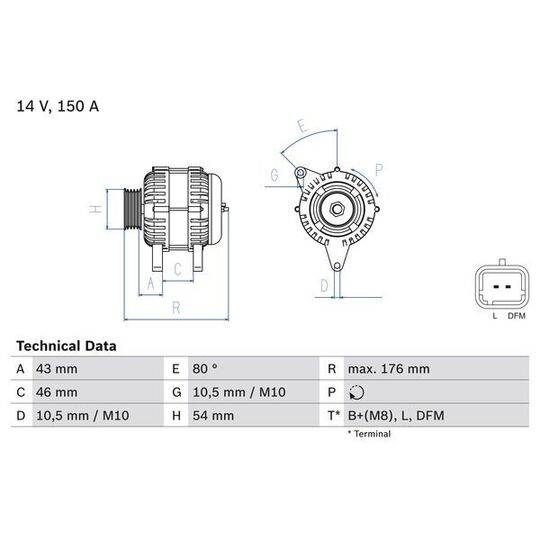

0 986 047 360 Alternator
SKU / part number
Bosch 0 986 047 360 Alternator. Part no. 0-986-047-360. Check specifications, vehicle fitment and references below.
Specifications
Length
176 | mm
Voltage
14 V
Alternator Charging Current
150 A
Fastening Type
Double Pivot Lever
Alternator Type
excl. vacuum pump
Distance from belt pulley to alternator
42.5 mm
Rotation Direction
Clockwise rotation
Pulleys
with multi-belt pulley
Number of grooves
6
Belt Pulley Ø
54.3 mm
Clamp
B2+(M8)
Clamp
L
Clamp
DFM
Plug Type ID
PL72
Recommended additional repairs
V-Belt/V-Ribbed Belt
Trade Numbers
4736
Shipping details
Weight
7.093 Kg
Customs Code
851150
Country of Origin
Slovakia
Cross-Reference Numbers
| BOSCH | 0 124 525 034, 1 986 A00 870 |
|---|---|
| CITROËN | 5702 A6, 5702 A7, 5702 C5, 5702 C6, 5702 ES, 5702 F3, 5705 6P, 5705 8G, 5705 AC, 5705 AL, 5705 EW, 5705 HC, 5705 NE, 96 460 654, 96 460 668 |
| DELCO REMY | DRA0191, DRA4214, DRS4197 |
| DENSO | 1042103170, 1042103171, 1042103240, 1042104270 |
| FIAT | 9639396480, 9646066880, K9639396480, K9646066880 |
| HC-PARTS | CA1674IR |
| HELLA | 8EL 738 003-001 |
| LANCIA | 9639396480, 9646066880, K9639396480, K9646066880 |
| LUCAS ELECTRICAL | LRA02228, LRA2228 |
| PEUGEOT | 5702 A6, 5702 A7, 5702 C5, 5702 C6, 5702 ES, 5702 F3, 5705 6P, 5705 8G, 5705 AC, 5705 AL, 5705 EW, 5705 HC, 96 406 235 80, 96 460 499 80, 96 460 654, 96 460 668, 96 460 688 80, 96 464 762 80, 96 464 775 80 |
| SUZUKI | 31400 73J00 000, 31400-73J00 |
| TOYOTA | 27060YV020 |
| VALEO | 2542472, 2542472A, 2542557, 2542704, 2542704A, 2542925, 2542925A, 2543527, 437436, 437472, A14VI40, SG15S017, TG15C022, TG15C054, TG15C119 |
