Bosch
0 986 048 301 Alternator
SKU / part number
Bosch 0 986 048 301 Alternator. Part no. 0-986-048-301. Check specifications, vehicle fitment and references below.

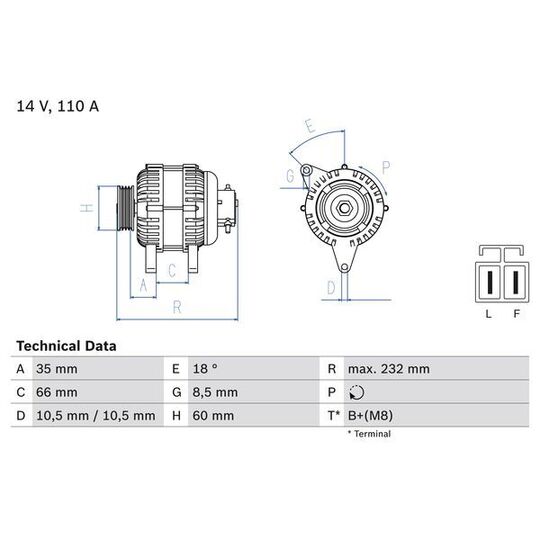

Specifications
Length
232 | mm
Voltage
14 V
Alternator Charging Current
110 A
Fastening Type
Double Pivot Lever
Alternator Type
incl. vacuum pump
Distance from belt pulley to alternator
35 mm
Rotation Direction
Clockwise rotation
Pulleys
with freewheel belt pulley
Number of grooves
6
Belt Pulley Ø
60 mm
Clamp
B+(M8)
Plug Type ID
PL127
Recommended additional repairs
V-Belt/V-Ribbed Belt
Trade Numbers
4830
Shipping details
Weight
7.82 Kg
Customs Code
851150
Country of Origin
China
Cross-Reference Numbers
| BOSCH | 0 986 048 303, 1 986 A01 188 |
|---|---|
| Bosch UP Test | F042305058 |
| HC-PARTS | JA1900IR |
| HITACHI | LR1110503, LR1110503A, LR1110503B, LR1110503C, LR1110503D, LR1110503E, LR1110503F |
| ISUZU | 8-97363-832-0, 8-97363-832-1, 8-97363-832-2, 8-97363-832-3, 8-98056-439-0 |
| LUCAS ELECTRICAL | LRA03127, LRA3127 |
| OPEL | 12 04 618, 62 04 197, 62 04 252, 93189496, 93189502, 95 62 189, 97363832, 98056439 |
| VAUXHALL | 97363832, 98056439, R1530090 |
