Bosch
0 986 083 850 Alternator
SKU / part number
Bosch 0 986 083 850 Alternator. Part no. 0-986-083-850. Check specifications, vehicle fitment and references below.

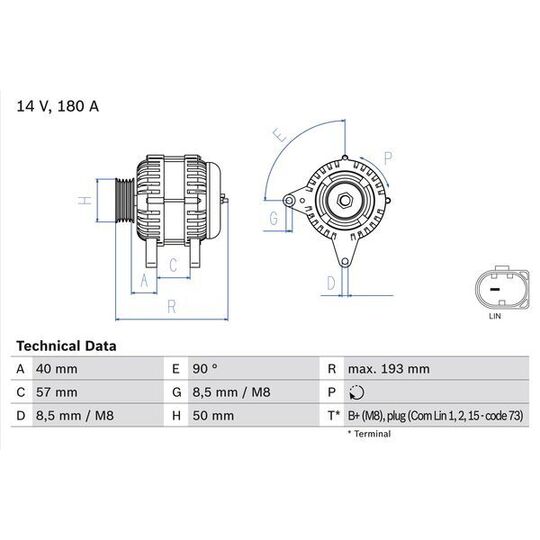

Specifications
Height
155 | mm
Length
193 | mm
Width
161 | mm
Voltage
14 V
Alternator Charging Current
180 A
Fastening Type
Double Pivot Lever
Alternator Type
excl. vacuum pump
Distance from belt pulley to alternator
40 mm
Rotation Direction
Clockwise rotation
Pulleys
with freewheel belt pulley
Number of grooves
6
Belt Pulley Ø
49.5 mm
Clamp
B+(M8),PLUG(COM,LIN)
Plug Type ID
PL181-1 PIN
Recommended additional repairs
V-Belt/V-Ribbed Belt
Shipping details
Weight
7.942 Kg
Customs Code
851150
Country of Origin
Slovakia
OE Numbers
| AUDI | 03L 903 024 L, 04L 903 021 K, 04L 903 023 H |
|---|---|
| SEAT | 03L 903 024 L, 04L 903 021 K, 04L 903 023 H |
| SKODA | 03L 903 024 L, 04L 903 021 K, 04L 903 023 H, 04L 903 023 HX |
| VW | 03L 903 023 N, 03L 903 024 L, 03L 903 024 N, 04L 903 021 K, 04L 903 023 H |
Cross-Reference Numbers
| AUDI | 03L 903 024 L, 04L 903 021 K, 04L 903 023 H |
|---|---|
| SEAT | 03L 903 024 L, 04L 903 021 K, 04L 903 023 H |
| SKODA | 03L 903 024 L, 04L 903 021 K, 04L 903 023 H, 04L 903 023 HX |
| VALEO | 2627026E, 2740493A, 439783, 440015, FG18T079, FG18T123, FG18T124, FG18T159, FG18T199 |
| VW | 03L 903 023 N, 03L 903 024 L, 03L 903 024 N, 04L 903 021 K, 04L 903 023 H |
