Bosch

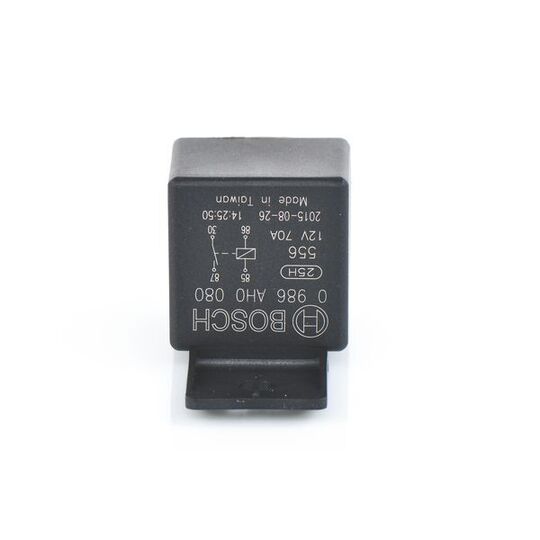

0 986 AH0 080 Relay, main current
SKU / part number
Bosch 0 986 AH0 080 Relay, main current. Part no. 0-986-AH0-080. Check specifications, vehicle fitment and references below.
Specifications
Switch Function
Normally Open Contact
Current Strength
70 A
Voltage
12 V
Number of pins
5
Relay function
Normally open contact
Temperature range from
-40 °C
Temperature range to
125 °C
Supplementary Article/Supplementary Info
with holder
Shipping details
Weight
0.048 Kg
Customs Code
853641
Country of Origin
Taiwan
OE Numbers
| AUDI | 1KO 951 253 A, 4H0951253 |
|---|---|
| HYUNDAI | 39160 37110, 95230 2P010 |
| ISUZU | 8-97309-295-0 |
| SEAT | 1KO 951 253 A, 4H0951253 |
| SKODA | 1KO 951 253 A, 4H0951253 |
| TOYOTA | 90987 02016, 90987 02025, 90987 02030 |
| VW | 1KO 951 253 A, 4H0951253 |
Cross-Reference Numbers
| AUDI | 1KO 951 253 A, 4H0951253 |
|---|---|
| DENSO | 1567002540, 1567002550, 1567003650, AH1567003130, AH1567003470 |
| ERA | 661115, 661313 |
| HELLA | 003437081, 4RA 933 332-521 |
| HERTH+BUSS ELPARTS | 75613169 |
| HOFFER | 7250002 |
| HYUNDAI | 39160 37110, 95230 2P010 |
| ISUZU | 8-97309-295-0 |
| MEAT & DORIA | 73250002 |
| METAL LEVE | MR 37 |
| NAGARES | RLACS412R |
| Panasonic | ACB82201M09, CB1APF12V, MR301978 |
| SEAT | 1KO 951 253 A, 4H0951253 |
| SKODA | 1KO 951 253 A, 4H0951253 |
| TOYOTA | 90987 02016, 90987 02025, 90987 02030 |
| VW | 1KO 951 253 A, 4H0951253 |
