Bosch

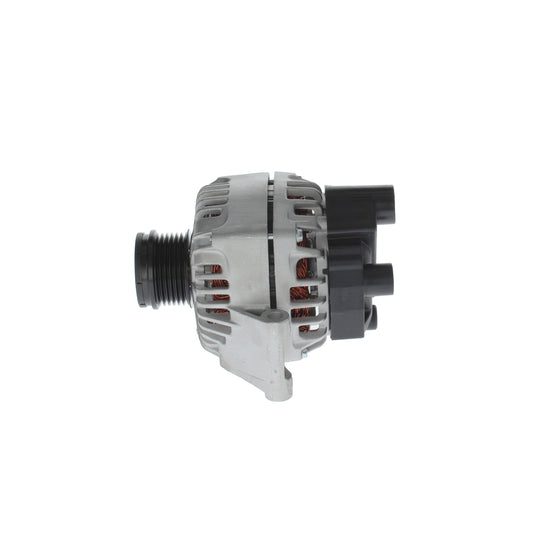

1 986 A00 559 Alternator
SKU / part number
Bosch 1 986 A00 559 Alternator. Part no. 1-986-A00-559. Check specifications, vehicle fitment and references below.
Specifications
Length
188 | mm
Voltage
14 V
Alternator Charging Current
90 A
Fastening Type
Direct fastening
Alternator Type
excl. vacuum pump
Distance from belt pulley to alternator
41.5 mm
Rotation Direction
Clockwise rotation
Pulleys
with freewheel belt pulley
Number of grooves
6
Belt Pulley Ø
54 mm
Clamp
B+(M8),D+(M5)
Recommended additional repairs
V-Belt/V-Ribbed Belt
Shipping details
Weight
5.995 Kg
Customs Code
851150
Country of Origin
China
OE Numbers
| FIAT | 46823547, 51784845, 51787209, 51805800, 51854910, 51854915, 51984055, 52003517, 55185076 |
|---|---|
| LANCIA | 46823547, 51784845, 51805800, 51854910 |
| OPEL | 13117279, 13243463, 13283344, 62 04 181, 93169024, 93169025, 95 62 205 |
| SUZUKI | 31400 85E00 000, 31400-85E00 |
| VAUXHALL | 13117279, 13243463, 13283344, R1530096 |
Cross-Reference Numbers
| BOSCH | 0 124 225 063, 0 986 048 771, 0 986 048 773 |
|---|---|
| DELCO REMY | DRA4244, DRA4254 |
| DENSO | 1012101120, 1012101121, 1012101190, 1012101191, 1012101192 |
| FIAT | 46823547, 51784845, 51787209, 51805800, 51854910, 51854915, 51984055, 52003517, 55185076 |
| HC-PARTS | CA1862IR |
| HELLA | 8EL 738 211-151 |
| LANCIA | 46823547, 51784845, 51805800, 51854910 |
| LUCAS ELECTRICAL | LRA02792, LRA02804, LRA2792, LRA2804 |
| OPEL | 13117279, 13243463, 13283344, 62 04 181, 93169024, 93169025, 95 62 205 |
| SUZUKI | 31400 85E00 000, 31400-85E00 |
| VALEO | 2542670, 2542670A, 2542670B, 2542851, 2542851A, 2542861, 2542861A, 2542884, 2542884A, 2543477, 2543477A, 2606334, 2623613A, 437474, 437504, 439505, 439524, TG9S010, TG9S015, TG9S016, TG9S021, TG9S022, TG9S036, TG9S140 |
| VAUXHALL | 13117279, 13243463, 13283344, R1530096 |
