Bosch

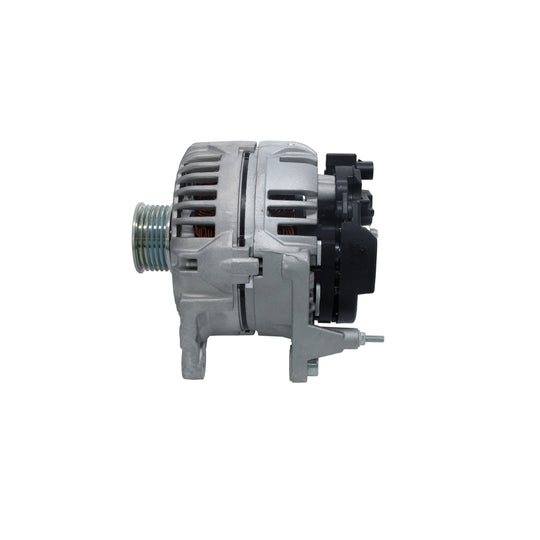

1 986 A00 563 Alternator
SKU / part number
Bosch 1 986 A00 563 Alternator. Part no. 1-986-A00-563. Check specifications, vehicle fitment and references below.
Specifications
Length
178 | mm
Voltage
14 V
Alternator Charging Current
110 A
Fastening Type
Double Pivot Lever
Alternator Type
excl. vacuum pump
Distance from belt pulley to alternator
30 mm
Rotation Direction
Clockwise rotation
Pulleys
with multi-belt pulley
Number of grooves
6
Belt Pulley Ø
49 mm
Clamp
B+(M8)
Plug Type ID
61
Recommended additional repairs
V-Belt/V-Ribbed Belt
Shipping details
Weight
5.757 Kg
Customs Code
851150
Country of Origin
China
OE Numbers
| AUDI | 03C 903 023 D |
|---|---|
| SEAT | 03C 903 023 B, 03C 903 023 D, 03C903023, 03C903023D |
| SKODA | 03C 903 023 B, 03C 903 023 D |
| VW | 03C 903 023 B, 03C 903 023 D, 03C 903 023 D1, 03C 903 023 DX, 03C903023 |
Cross-Reference Numbers
| AUDI | 03C 903 023 D |
|---|---|
| BOSCH | 0 124 325 044, 0 124 325 095, 0 124 325 128, 0 986 045 320 |
| DELCO REMY | DRB5320 |
| HC-PARTS | CA1817IR |
| HELLA | 8EL 738 202-001 |
| LUCAS ELECTRICAL | LRA02361, LRA2361 |
| SEAT | 03C 903 023 B, 03C 903 023 D, 03C903023, 03C903023D |
| SKODA | 03C 903 023 B, 03C 903 023 D |
| VALEO | 2542731, 437456, TG11C015 |
| VW | 03C 903 023 B, 03C 903 023 D, 03C 903 023 D1, 03C 903 023 DX, 03C903023 |
