Bosch

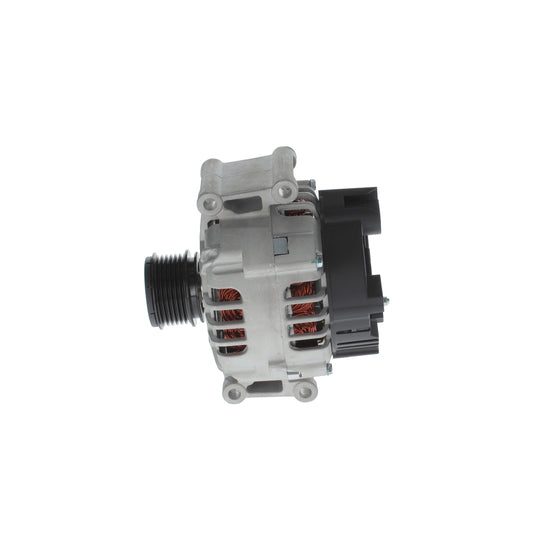

1 986 A00 654 Alternator
SKU / part number
Bosch 1 986 A00 654 Alternator. Part no. 1-986-A00-654. Check specifications, vehicle fitment and references below.
Specifications
Length
192 | mm
Voltage
14 V
Alternator Charging Current
140 A
Fastening Type
Direct fastening
Alternator Type
excl. vacuum pump
Distance from belt pulley to alternator
29.3 mm
Rotation Direction
Clockwise rotation
Pulleys
with freewheel belt pulley
Number of grooves
6
Belt Pulley Ø
56 mm
Clamp
B+(M8)
Plug Type ID
61
Recommended additional repairs
V-Belt/V-Ribbed Belt
Shipping details
Weight
7.58 Kg
Customs Code
851150
Country of Origin
China
OE Numbers
| AUDI | 06B 903 016 AB, 06B 903 016 AF, 06B 903 016 EX, 06B 903 019 E, 06B 903 019 EX, 06B903016ABX, 06D 903 016 A, 06J 903 023 C |
|---|---|
| SEAT | 06B 903 016 AB, 06D 903 016 A, 06J 903 023 C |
| SKODA | 06B 903 016 AB, 06B 903 019 E, 06D 903 016 A, 06J 903 023 C |
| VW | 06B 903 016 AA, 06B 903 016 AB, 06B 903 016 AF, 06B 903 016 EX, 06B 903 019 E, 06B 903 019 EX, 06B903016ABX, 06D 903 016 A, 06J 903 023 C, 06J 903 023 CX |
Cross-Reference Numbers
| AUDI | 06B 903 016 AB, 06B 903 016 AF, 06B 903 016 EX, 06B 903 019 E, 06B 903 019 EX, 06B903016ABX, 06D 903 016 A, 06J 903 023 C |
|---|---|
| BOSCH | 0 124 525 009, 0 124 525 088, 0 986 046 180, AL0879N |
| DELCO REMY | DRB6180 |
| HC-PARTS | CA1811IR |
| HELLA | 8EL 738 194-001 |
| LUCAS ELECTRICAL | LEA0538, LEA538, LRA02255, LRA2255 |
| SEAT | 06B 903 016 AB, 06D 903 016 A, 06J 903 023 C |
| SKODA | 06B 903 016 AB, 06B 903 019 E, 06D 903 016 A, 06J 903 023 C |
| VALEO | 2542494, 2542494A, 2542739, 2542739A, 2542739B, 2543369, 2606237, 2606237A, 437360, 439393, SG14B010, SG14B016, SG14B022, TG14C025 |
| VW | 06B 903 016 AA, 06B 903 016 AB, 06B 903 016 AF, 06B 903 016 EX, 06B 903 019 E, 06B 903 019 EX, 06B903016ABX, 06D 903 016 A, 06J 903 023 C, 06J 903 023 CX |
