Bosch

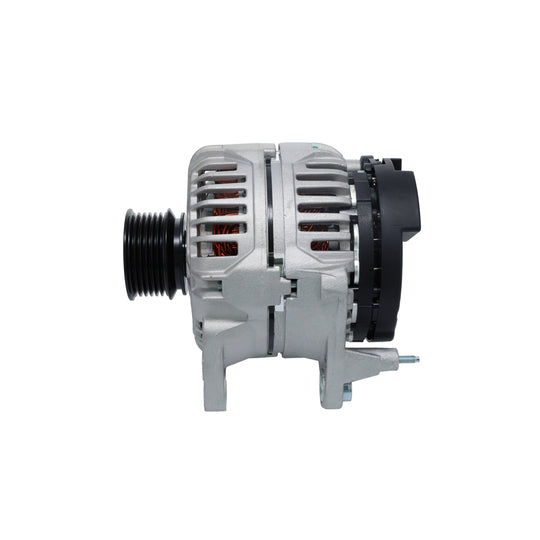

1 986 A00 779 Alternator
SKU / part number
Bosch 1 986 A00 779 Alternator. Part no. 1-986-A00-779. Check specifications, vehicle fitment and references below.
Specifications
Length
187 | mm
Voltage
14 V
Alternator Charging Current
90 A
Fastening Type
Double Pivot Lever
Alternator Type
excl. vacuum pump
Distance from belt pulley to alternator
39.6 mm
Rotation Direction
Clockwise rotation
Pulleys
with multi-belt pulley
Number of grooves
6
Belt Pulley Ø
56 mm
Clamp
B+(M8)
Plug Type ID
61
Recommended additional repairs
V-Belt/V-Ribbed Belt
Shipping details
Weight
6.412 Kg
Customs Code
851150
Country of Origin
China
OE Numbers
| AUDI | 028 903 028 D, 037 903 025 F, 06A903026 |
|---|---|
| SEAT | 028 903 028 D, 028903028D, 030 903 023 J, 037 903 025 F, 038 903 018 P, 038 903 023 A, 06A 903 026 A, 06A903023, 06A903026 |
| SKODA | 028 903 028 D, 030 903 023 J, 037 903 025 F, 038 903 018 P, 06A 903 026 A, 06A903023, 06A903026 |
| VW | 028 903 028 D, 028 903 028 DX, 030 903 023 J, 030 903 023 JX, 030 903 023 N, 037 903 025 F, 038 903 018 A, 038 903 018 P, 038 903 023 A, 06A 903 026 A, 06A 903 026 AX, 06A903023, 06A903026 |
Cross-Reference Numbers
| ACDelco | 10 1N1 0013 |
|---|---|
| AUDI | 028 903 028 D, 037 903 025 F, 06A903026 |
| BOSCH | 0 124 325 003, 0 124 325 011, 0 124 325 032, 0 124 325 135, 0 124 325 137, 0 986 041 500, 1 986 A00 804, AL0188N |
| DELCO REMY | DRB1500, JFZ1928 |
| HC-PARTS | CA1378IR |
| HELLA | 8EL 737 554-001 |
| LUCAS ELECTRICAL | LRB00486, LRB486 |
| MAGNETI MARELLI | 943355061010 |
| OE-TurboPower | N13852 |
| SEAT | 028 903 028 D, 028903028D, 030 903 023 J, 037 903 025 F, 038 903 018 P, 038 903 023 A, 06A 903 026 A, 06A903023, 06A903026 |
| SKODA | 028 903 028 D, 030 903 023 J, 037 903 025 F, 038 903 018 P, 06A 903 026 A, 06A903023, 06A903026 |
| VALEO | 2542241, 2542241A, 2542241B, 2542241C, 2542767, 2543320, 437316, 439003, 439311, 439445, SG9B013, SG9B059, SG9B087 |
| VW | 028 903 028 D, 028 903 028 DX, 030 903 023 J, 030 903 023 JX, 030 903 023 N, 037 903 025 F, 038 903 018 A, 038 903 018 P, 038 903 023 A, 06A 903 026 A, 06A 903 026 AX, 06A903023, 06A903026 |
| ZEN SA | 3975 |
