Bosch

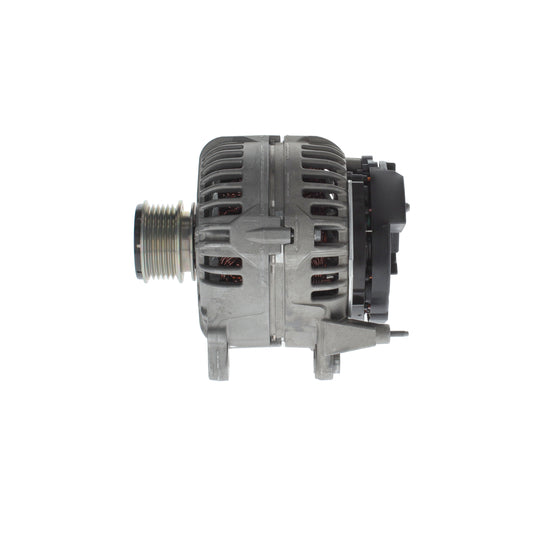

1 986 A00 902 Alternator
SKU / part number
Bosch 1 986 A00 902 Alternator. Part no. 1-986-A00-902. Check specifications, vehicle fitment and references below.
Specifications
Length
201 | mm
Voltage
14 V
Alternator Charging Current
140 A
Fastening Type
Double Pivot Lever
Alternator Type
excl. vacuum pump
Distance from belt pulley to alternator
39.6 mm
Rotation Direction
Clockwise rotation
Pulleys
with freewheel belt pulley
Number of grooves
6
Belt Pulley Ø
56.2 mm
Clamp
B+(M8)
Plug Type ID
61
Recommended additional repairs
V-Belt/V-Ribbed Belt
Shipping details
Weight
7.13 Kg
Customs Code
851150
Country of Origin
China
OE Numbers
| AUDI | 03L 903 023 F, 045 903 023 G, 06F 903 023 A, 06F 903 023 C, 06F 903 023 F, 06F 903 023 H, 06F 903 023 HX, 06F 903 023 J |
|---|---|
| KARMANN | 304183 |
| LISTER | 24090 |
| MERCEDES-BENZ | HVW0001540102 |
| SEAT | 03L 903 023 F, 06F 903 023 A, 06F 903 023 F, 06F 903 023 J, 06F903023F |
| SKODA | 03L 903 023 F, 06F 903 023 A, 06F 903 023 C, 06F 903 023 F |
| VM | 38522326F, C8520069A |
| VOLVO | S1800A066 |
| VW | 03L 903 023 F, 045 903 023 G, 045 903 023 GX, 06F 903 023 A, 06F 903 023 AX, 06F 903 023 C, 06F 903 023 CX, 06F 903 023 F, 06F 903 023 FX, 06F 903 023 H, 06F 903 023 HX, 06F 903 023 J |
Cross-Reference Numbers
| AUDI | 03L 903 023 F, 045 903 023 G, 06F 903 023 A, 06F 903 023 C, 06F 903 023 F, 06F 903 023 H, 06F 903 023 HX, 06F 903 023 J |
|---|---|
| BOSCH | 0 124 525 033, 0 124 525 039, 0 124 525 050, 0 124 525 066, 0 124 525 067, 0 124 525 091, 0 124 525 092, 0 124 525 525, 0 124 525 539, 0 986 045 340, 0 986 045 347, 0 986 048 180, 1 986 A01 703, AL0834N |
| DELCO REMY | DRB5340 |
| HC-PARTS | CA1782IR |
| HELLA | 8EL 738 192-001 |
| KARMANN | 304183 |
| LETRIKA | IA1164 |
| LISTER | 24090 |
| LUCAS ELECTRICAL | LRA02291, LRA03156, LRA2291, LRA3156 |
| MERCEDES-BENZ | HVW0001540102 |
| SEAT | 03L 903 023 F, 06F 903 023 A, 06F 903 023 F, 06F 903 023 J, 06F903023F |
| SKODA | 03L 903 023 F, 06F 903 023 A, 06F 903 023 C, 06F 903 023 F |
| VALEO | 2542596, 2542695, 2542695A, 2542695C, 2542695D, 2542898, 2543282, 2607703A, 437454, 437526, 439489, TG14C011, TG14C015, TG14C016, TG14C026 |
| VM | 38522326F, C8520069A |
| VOLVO | S1800A066 |
| VW | 03L 903 023 F, 045 903 023 G, 045 903 023 GX, 06F 903 023 A, 06F 903 023 AX, 06F 903 023 C, 06F 903 023 CX, 06F 903 023 F, 06F 903 023 FX, 06F 903 023 H, 06F 903 023 HX, 06F 903 023 J |
