Bosch

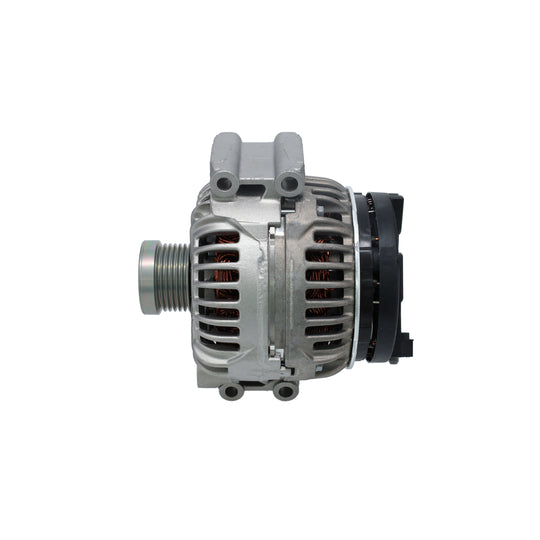

1 986 A00 909 Alternator
SKU / part number
Bosch 1 986 A00 909 Alternator. Part no. 1-986-A00-909. Check specifications, vehicle fitment and references below.
Specifications
Length
195 | mm
Voltage
14 V
Alternator Charging Current
150 A
Fastening Type
Direct fastening
Alternator Type
excl. vacuum pump
Distance from belt pulley to alternator
30 mm
Rotation Direction
Clockwise rotation
Pulleys
with freewheel belt pulley
Number of grooves
6
Belt Pulley Ø
49 mm
Clamp
B+(M8)
Plug Type ID
86
Recommended additional repairs
V-Belt/V-Ribbed Belt
Shipping details
Weight
8.154 Kg
Customs Code
851150
Country of Origin
China
OE Numbers
| BMW | 12 31 4 456 281, 12 31 7 505 896, 12 31 7 512 151, 12 31 7 516 101, 12 31 7 516 723, 12 31 7 521 384, 12 31 7 521 385, 12 31 7 521 488, 12 31 7 521 489, 12 31 7 521 490, 12 31 7 521 491, 12 31 7 522 962, 12 31 7 532 964, 12 31 7 532 965, 12 31 7 532 966, 12 31 7 532 968, 12 31 7 532 969, 12 31 7 533 270, 12 31 7 533 272, 7 532 696 |
|---|---|
| STEYR | 7532968, 7532969 |
Cross-Reference Numbers
| BMW | 12 31 4 456 281, 12 31 7 505 896, 12 31 7 512 151, 12 31 7 516 101, 12 31 7 516 723, 12 31 7 521 384, 12 31 7 521 385, 12 31 7 521 488, 12 31 7 521 489, 12 31 7 521 490, 12 31 7 521 491, 12 31 7 522 962, 12 31 7 532 964, 12 31 7 532 965, 12 31 7 532 966, 12 31 7 532 968, 12 31 7 532 969, 12 31 7 533 270, 12 31 7 533 272, 7 532 696 |
|---|---|
| BOSCH | 0 124 325 030, 0 124 325 062, 0 124 325 087, 0 124 325 099, 0 124 325 116, 0 124 515 098, 0 124 525 045, 0 124 525 059, 0 124 525 561, 0 986 046 270, 0 986 047 240 |
| LUCAS ELECTRICAL | LRA02149, LRA02336, LRA2149, LRA2336 |
| STEYR | 7532968, 7532969 |
| VALEO | 2542753, 2542753B, 437435, SG14B017 |
