Bosch

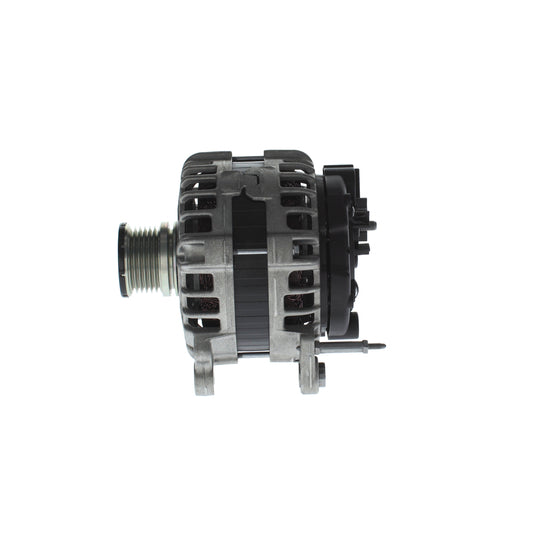

1 986 A01 092 Alternator
SKU / part number
Bosch 1 986 A01 092 Alternator. Part no. 1-986-A01-092. Check specifications, vehicle fitment and references below.
Specifications
Length
188 | mm
Voltage
14 V
Alternator Charging Current
140 A
Fastening Type
Double Pivot Lever
Alternator Type
excl. vacuum pump
Distance from belt pulley to alternator
39.5 mm
Rotation Direction
Clockwise rotation
Pulleys
with freewheel belt pulley
Number of grooves
6
Belt Pulley Ø
49.5 mm
Clamp
B+(M8)
Plug Type ID
125
Recommended additional repairs
V-Belt/V-Ribbed Belt
Shipping details
Weight
7.084 Kg
Customs Code
851150
Country of Origin
China
OE Numbers
| AUDI | 03L 903 023 K, 03L 903 023 L, 04L 903 024 S |
|---|---|
| SEAT | 03L 903 023 K, 03L 903 023 L, 04L 903 024 S |
| SKODA | 03L 903 023 K, 03L 903 023 L, 04L 903 024 S |
| VW | 03L 903 023 K, 03L 903 023 KX, 03L 903 023 L, 04L 903 024 S, 04L 903 024 SX |
Cross-Reference Numbers
| AUDI | 03L 903 023 K, 03L 903 023 L, 04L 903 024 S |
|---|---|
| BOSCH | 0 986 083 160, AL0170N, F 000 BL0 800, F 000 BL0 8A0, F 000 BL0 8J7, F 000 BL0 8J8 |
| SEAT | 03L 903 023 K, 03L 903 023 L, 04L 903 024 S |
| SKODA | 03L 903 023 K, 03L 903 023 L, 04L 903 024 S |
| VW | 03L 903 023 K, 03L 903 023 KX, 03L 903 023 L, 04L 903 024 S, 04L 903 024 SX |
