Bosch

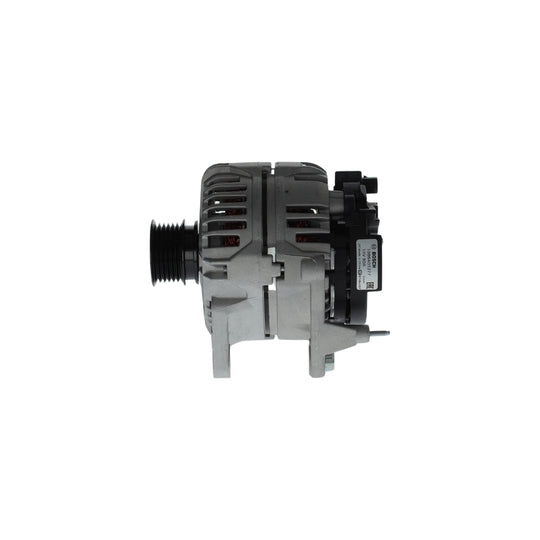

1 986 A01 277 Alternator
SKU / part number
Bosch 1 986 A01 277 Alternator. Part no. 1-986-A01-277. Check specifications, vehicle fitment and references below.
Specifications
Length
187 | mm
Voltage
14 V
Alternator Charging Current
90 A
Fastening Type
Double Pivot Lever
Alternator Type
excl. vacuum pump
Distance from belt pulley to alternator
40 mm
Rotation Direction
Clockwise rotation
Pulleys
with multi-belt pulley
Number of grooves
6
Belt Pulley Ø
50 mm
Clamp
B+(M8)
Plug Type ID
61
Recommended additional repairs
V-Belt/V-Ribbed Belt
Shipping details
Weight
5.616 Kg
Customs Code
851150
Country of Origin
China
OE Numbers
| SEAT | 037 903 025 L, 037 903 025 S, 047 903 015 G |
|---|---|
| SKODA | 047 903 015 G |
| VW | 037 903 025 L, 037 903 025 S, 047 903 015 G |
Cross-Reference Numbers
| BOSCH | 0 124 315 005, 0 986 041 910 |
|---|---|
| DELCO REMY | DRB1910 |
| HC-PARTS | CA1504IR |
| HELLA | 8EL 737 757-001 |
| LUCAS ELECTRICAL | LRB00478, LRB478 |
| SEAT | 037 903 025 L, 037 903 025 S, 047 903 015 G |
| SKODA | 047 903 015 G |
| VALEO | 2541997, 2542281, 2542281C, 437170, 437399, 439440, A11VI95, SG8B018 |
| VW | 037 903 025 L, 037 903 025 S, 047 903 015 G |
