Bosch

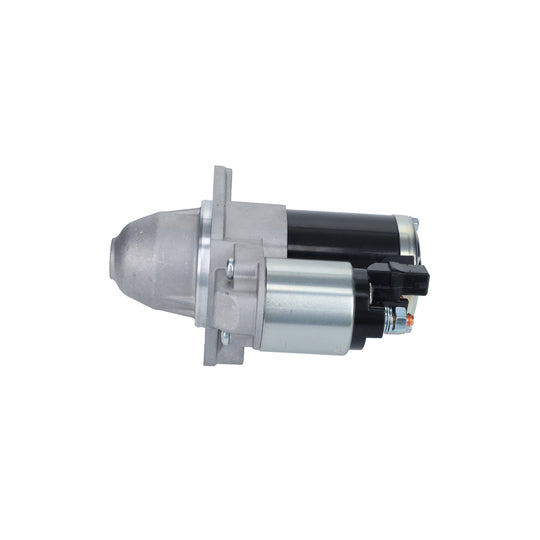

1 986 S00 687 Starter
SKU / part number
Bosch 1 986 S00 687 Starter. Part no. 1-986-S00-687. Check specifications, vehicle fitment and references below.
Specifications
Length
198 | mm
Voltage
12 V
Rated Power
1.4 kW
Number of mounting bores
1
Number of threaded holes
1
Number of Teeth
9
Clamp
30,50
Flange Diameter
76.2 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
25.5 mm
Starter Type
Self-supporting
Thread Size
M10
Bore Diameter 2
11 mm
Position/Degree
rechts
Jaw opening angle measurement
52 Degree
Shipping details
Weight
3.3 Kg
Customs Code
851140
Country of Origin
China
OE Numbers
| BMW | 12 41 2 354 701, 12 41 7 521 116, 12 41 7 521 122, 12 41 7 521 123, 12 41 7 526 236, 12 41 7 579 155, 12 41 7 579 156, 12 41 7 594 292, 12 41 7 610 343, 12 41 7 610 350, 7 594 292 |
|---|
Cross-Reference Numbers
| BMW | 12 41 2 354 701, 12 41 7 521 116, 12 41 7 521 122, 12 41 7 521 123, 12 41 7 526 236, 12 41 7 579 155, 12 41 7 579 156, 12 41 7 594 292, 12 41 7 610 343, 12 41 7 610 350, 7 594 292 |
|---|---|
| BOSCH | 0 001 107 423, 0 001 107 424, 0 001 107 527, 0 001 107 528, 0 986 021 500, 0 986 021 503, 0 986 023 953, 0 986 024 793, 1 986 S00 013, SR0492N |
| DELCO REMY | DRT1500 |
| DENSO | 4280001760, 4280004490, DSN1375, MS4280001760 |
| HC-PARTS | CS1412 |
| HELLA | 8EA 738 258-601 |
| LUCAS ELECTRICAL | LRS02298, LRS2298 |
