Bosch

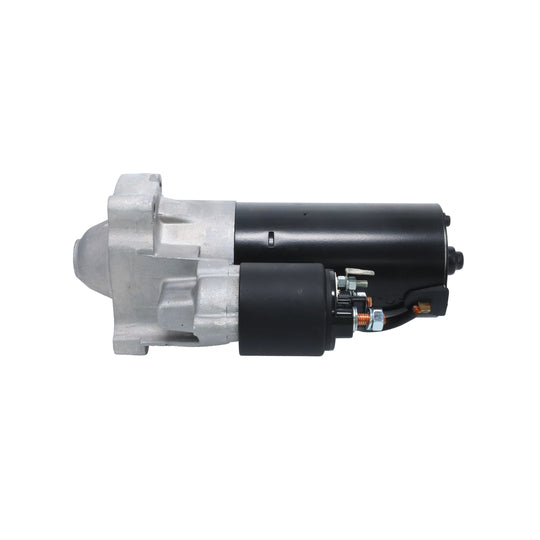

1 986 S00 716 Starter
SKU / part number
Bosch 1 986 S00 716 Starter. Part no. 1-986-S00-716. Check specifications, vehicle fitment and references below.
Specifications
Length
265 | mm
Voltage
12 V
Rated Power
1.8 kW
Number of mounting bores
0
Number of threaded holes
3
Number of Teeth
11
Clamp
30,50
Flange Diameter
66 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
-5 mm
Starter Type
Self-supporting
Thread Size
M10x1.5
Thread Size 1
M10x1.5
Thread Size 2
M10x1.5
Position/Degree
links
Jaw opening angle measurement
35 Degree
Shipping details
Weight
4.77 Kg
Customs Code
851140
Country of Origin
China
OE Numbers
| CITROËN | 5802 36, 5802 50, 5802 92, 5802 A6, 5802 C3, 5802 C4, 5802 CJ, 5802 CP, 5802 CQ, 5802 E2, 5802 EQ, 5802 G0, 5802 G9, 5802 H7, 5802 L4, 5802 M4, 5802 Q5, 5802 W7, 91 040 098, 91 040 098 80, 91 514 125, 91 514 312 80, 91 536 044, 96 035 035, 96 054 384, 96 356 597, 96 365 597, 96 398 467 |
|---|---|
| DAF | 1516680R, 1516753R, 1516821R |
| FIAT | 1320921080, 1332419080, 63984678, 71716564, 71719595, 71719598, 71719604, 71719605, 71719606, 71722374, 71722375, 9603503580, 9603503680, 9624291480, 9625382780, 9625383280, 9635659580, 963984678, 9639846780, 9947830, K1320921080, K1332419080, K9603503580, K9603503680, K9624291480, K9625382780, K9625383280, K9635659580, K9639846780 |
| HYUNDAI | 36100 29000 |
| LADA | 21215 3708010 |
| LANCIA | 71719604, 71719605, 71719606, 9603503580, 9947830, K9603503580 |
| PEUGEOT | 5802 36, 5802 50, 5802 92, 5802 A6, 5802 C3, 5802 C4, 5802 CJ, 5802 CP, 5802 CQ, 5802 E2, 5802 EQ, 5802 G0, 5802 G9, 5802 H7, 5802 L4, 5802 M4, 5802 Q5, 5802 W7, 91 040 098, 91 040 098 80, 91 514 125, 91 514 312 80, 91 536 044, 96 035 035, 96 054 384, 96 356 597, 96 365 597, 96 398 467 |
| SUZUKI | 3110086CB1 |
| TALBOT | 580250, 91 040 098 80, A 040 098 80 |
Cross-Reference Numbers
| BOSCH | 0 001 109 010, 0 001 109 026, 0 001 110 017, 0 001 110 056, 0 001 223 014, 0 001 314 034, 0 986 012 400, 0 986 013 240, 0 986 013 241, 0 986 013 243 |
|---|---|
| CITROËN | 5802 36, 5802 50, 5802 92, 5802 A6, 5802 C3, 5802 C4, 5802 CJ, 5802 CP, 5802 CQ, 5802 E2, 5802 EQ, 5802 G0, 5802 G9, 5802 H7, 5802 L4, 5802 M4, 5802 Q5, 5802 W7, 91 040 098, 91 040 098 80, 91 514 125, 91 514 312 80, 91 536 044, 96 035 035, 96 054 384, 96 356 597, 96 365 597, 96 398 467 |
| DAF | 1516680R, 1516753R, 1516821R |
| DELCO REMY | DRS3115, DRS3240, DRS3618 |
| FIAT | 1320921080, 1332419080, 63984678, 71716564, 71719595, 71719598, 71719604, 71719605, 71719606, 71722374, 71722375, 9603503580, 9603503680, 9624291480, 9625382780, 9625383280, 9635659580, 963984678, 9639846780, 9947830, K1320921080, K1332419080, K9603503580, K9603503680, K9624291480, K9625382780, K9625383280, K9635659580, K9639846780 |
| HC-PARTS | CS1177, CS342, CS373 |
| HELLA | 8EA 726 090-001, 8EA 726 121-001, 8EA 737 751-001 |
| HYUNDAI | 36100 29000 |
| LADA | 21215 3708010 |
| LANCIA | 71719604, 71719605, 71719606, 9603503580, 9947830, K9603503580 |
| LUCAS ELECTRICAL | LRS00475, LRS00476, LRS01579, LRS01996, LRS1579, LRS1996, LRS475, LRS476 |
| MAGNETI MARELLI | 943251127, 943251144, 943253101, MSR377, MSR381, MSR5301, MSR912 |
| MITSUBA | M001T50171, M002T90071, M1T50171, M2T90071 |
| PEUGEOT | 5802 36, 5802 50, 5802 92, 5802 A6, 5802 C3, 5802 C4, 5802 CJ, 5802 CP, 5802 CQ, 5802 E2, 5802 EQ, 5802 G0, 5802 G9, 5802 H7, 5802 L4, 5802 M4, 5802 Q5, 5802 W7, 91 040 098, 91 040 098 80, 91 514 125, 91 514 312 80, 91 536 044, 96 035 035, 96 054 384, 96 356 597, 96 365 597, 96 398 467 |
| SUZUKI | 3110086CB1 |
| TALBOT | 580250, 91 040 098 80, A 040 098 80 |
| VALEO | 432561, 432630, 433305, 436068, 438030, 438069, 455513, 455691, 455749, 455929, 499017, D7R12, D7R127, D7R20, D7R27, D7R32, D7R8, D7R9, ND138, ND204 |
