Bosch
1 986 S00 748 Starter
SKU / part number

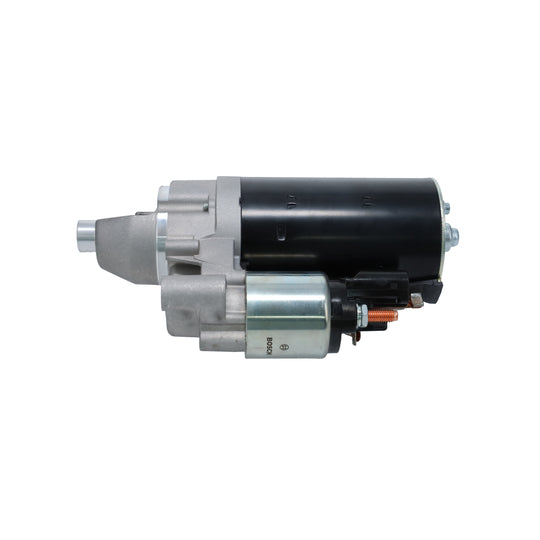

Bosch 1 986 S00 748 Starter. Part no. 1-986-S00-748. Check specifications, vehicle fitment and references below.
Specifications
Length
249 | mm
Voltage
12 V
Rated Power
2.2 kW
Number of mounting bores
1
Number of threaded holes
1
Number of Teeth
10
Clamp
30,50
Flange Diameter
66 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
23.6 mm
Starter Type
Self-supporting
Thread Size
M12x1.75
Bore Diameter 2
11 mm
Position/Degree
links
Jaw opening angle measurement
22 Degree
Shipping details
Weight
4.744 Kg
Customs Code
851140
Country of Origin
China
OE Numbers
| AUDI | 057911021, 059 911 021 C, 059 911 021 D, 059 911 021 M, 059911022 |
|---|---|
| PORSCHE | 059911022 |
| VW | 059 911 021 B, 059 911 021 BX, 059 911 021 C, 059 911 021 CX, 059 911 021 D, 059 911 021 DX, 059 911 021 M, 059 911 021 MX, 059911022 |
Cross-Reference Numbers
| AUDI | 057911021, 059 911 021 C, 059 911 021 D, 059 911 021 M, 059911022 |
|---|---|
| BOSCH | 0 001 109 275, 0 001 109 276, 0 001 109 280, 0 001 109 281, 0 001 109 315, 0 001 109 316, 0 001 109 361, 0 001 109 362, 0 001 109 421, 0 001 109 422, 0 986 025 400 |
| HC-PARTS | CS1538 |
| PORSCHE | 059911022 |
| VALEO | TS22E45 |
| VW | 059 911 021 B, 059 911 021 BX, 059 911 021 C, 059 911 021 CX, 059 911 021 D, 059 911 021 DX, 059 911 021 M, 059 911 021 MX, 059911022 |
