Bosch

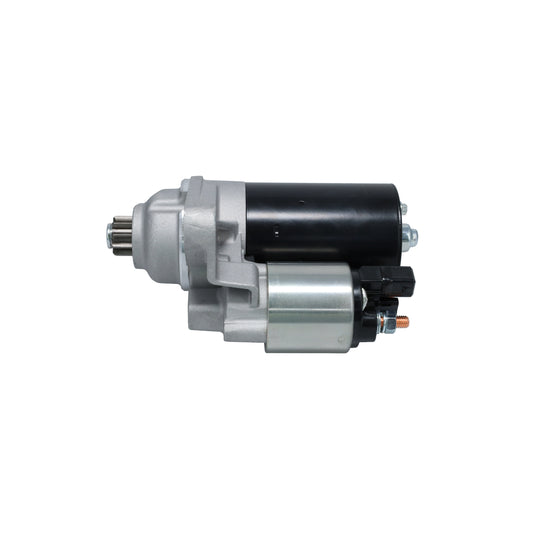

1 986 S00 780 Starter
SKU / part number
Bosch 1 986 S00 780 Starter. Part no. 1-986-S00-780. Check specifications, vehicle fitment and references below.
Specifications
Length
210 | mm
Voltage
12 V
Rated Power
1.1 kW
Number of mounting bores
2
Number of threaded holes
0
Number of Teeth
10
Clamp
30,50
Flange Diameter
76.2 mm
Rotation Direction
Anticlockwise rotation
Pinion Rest Position
51.9 mm
Starter Type
Floating pinion
Bore Diameter
12.5 mm
Bore Diameter 2
12.5 mm
Position/Degree
links
Shipping details
Weight
4.62 Kg
Customs Code
851140
Country of Origin
China
OE Numbers
| AUDI | 02T 911 023 E, 02T 911 023 G |
|---|---|
| SEAT | 02T 911 023 E, 02T 911 023 G, 02T911023G, 02T911023GX |
| SKODA | 02T 911 023 A, 02T 911 023 E, 02T 911 023 G |
| VW | 02T 911 021 E, 02T 911 023 A, 02T 911 023 E, 02T 911 023 EX, 02T 911 023 G, 02T 911 023 GX |
Cross-Reference Numbers
| AUDI | 02T 911 023 E, 02T 911 023 G |
|---|---|
| BOSCH | 0 001 120 400, 0 001 120 401, 0 001 121 016, 0 001 121 017, 0 986 018 430, 0 986 020 780, 1 986 S01 611 |
| DELCO REMY | DRT0780 |
| HC-PARTS | CS1282 |
| HELLA | 8EA 738 108-001 |
| LUCAS ELECTRICAL | LRS01610, LRS1610 |
| MAGNETI MARELLI | 635 212 04 |
| SEAT | 02T 911 023 E, 02T 911 023 G, 02T911023G, 02T911023GX |
| SEG AUTOMOTIVE | T001006004 |
| SKODA | 02T 911 023 A, 02T 911 023 E, 02T 911 023 G |
| VALEO | 495107, TSC10R7 |
| VW | 02T 911 021 E, 02T 911 023 A, 02T 911 023 E, 02T 911 023 EX, 02T 911 023 G, 02T 911 023 GX |
| ZEN SA | 31001 |
