Bosch

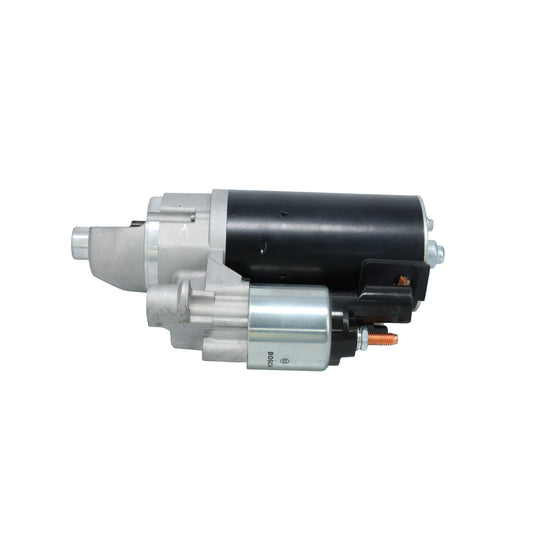

1 986 S00 846 Starter
SKU / part number
Bosch 1 986 S00 846 Starter. Part no. 1-986-S00-846. Check specifications, vehicle fitment and references below.
Specifications
Length
248 | mm
Voltage
12 V
Rated Power
2.5 kW
Number of mounting bores
2
Number of threaded holes
1
Number of Teeth
10
Clamp
30,50
Flange Diameter
66 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
23 mm
Starter Type
Self-supporting
Thread Size
M12x1,75
Bore Diameter
11 mm
Position/Degree
links
Mounting Angle
18 degrees
Jaw opening angle measurement
20 Degree
Mounting bore angle measurement
18 degree
Shipping details
Weight
4.785 Kg
Customs Code
851140
Country of Origin
China
OE Numbers
| AUDI | 059 911 021 G, 059 911 021 GX, 059 911 021 K |
|---|---|
| PORSCHE | 059911021G, 059911021K |
| VW | 059 911 021 F, 059 911 021 FX, 059 911 021 G, 059 911 021 GX, 059 911 021 H, 059 911 021 HX, 059 911 021 K, 059 911 021 KX |
Cross-Reference Numbers
| AUDI | 059 911 021 G, 059 911 021 GX, 059 911 021 K |
|---|---|
| BOSCH | 0 001 139 017, 0 001 139 018, 0 001 139 041, 0 001 139 042, 0 001 139 045, 0 001 139 046, 0 001 139 073, 0 001 139 074, 0 986 025 160, 1 986 S00 994 |
| PORSCHE | 059911021G, 059911021K |
| VW | 059 911 021 F, 059 911 021 FX, 059 911 021 G, 059 911 021 GX, 059 911 021 H, 059 911 021 HX, 059 911 021 K, 059 911 021 KX |
