Bosch

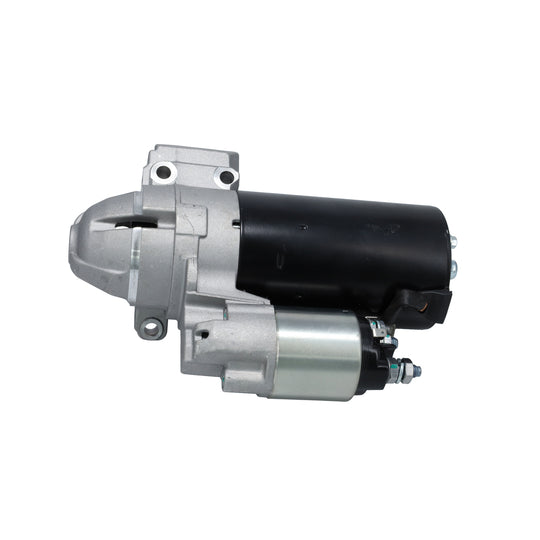

1 986 S00 863 Starter
SKU / part number
Bosch 1 986 S00 863 Starter. Part no. 1-986-S00-863. Check specifications, vehicle fitment and references below.
Specifications
Length
201 | mm
Voltage
12 V
Rated Power
2.2 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
11
Clamp
30,50
Flange Diameter
69 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
5.15 mm
Starter Type
Self-supporting
Bore Diameter
9 mm
Bore Diameter 2
9 mm
Bore Ø 3
9 mm
Position/Degree
rechts
Mounting Angle
51 degrees
Jaw opening angle measurement
5 Degree
Mounting bore angle measurement
51 degree
Shipping details
Weight
4.932 Kg
Customs Code
851140
Country of Origin
China
OE Numbers
| BMW | 12 41 7 798 006, 12 41 7 804 140, 12 41 7 812 034, 12 41 7 823 700, 12 41 7 823 701, 12 41 8 506 657, 12 41 8 509 198, 12 41 8 515 795, 12 41 8 515 796, 12 41 8 519 154, 12 41 8 570 238, 12 41 8 570 239, 12 41 8 570 383, 12 41 8 577 006, 12 41 8 581 097 |
|---|
Cross-Reference Numbers
| BMW | 12 41 7 798 006, 12 41 7 804 140, 12 41 7 812 034, 12 41 7 823 700, 12 41 7 823 701, 12 41 8 506 657, 12 41 8 509 198, 12 41 8 515 795, 12 41 8 515 796, 12 41 8 519 154, 12 41 8 570 238, 12 41 8 570 239, 12 41 8 570 383, 12 41 8 577 006, 12 41 8 581 097 |
|---|---|
| BOSCH | 0 001 139 001, 0 001 139 002, 0 001 139 015, 0 001 139 016, 0 001 148 009, 0 001 148 010, 0 001 148 025, 0 001 148 026, 0 001 148 029, 0 001 148 030, 0 001 148 033, 0 001 148 034, 0 986 022 020, 0 986 022 023, SR0453N |
| DELCO REMY | DRS0177 |
| HC-PARTS | CS1467 |
| HELLA | 8EA 738 258-941 |
| LUCAS ELECTRICAL | LRS02492, LRS02532, LRS2492, LRS2532 |
