Bosch
1 986 S00 884 Starter
SKU / part number

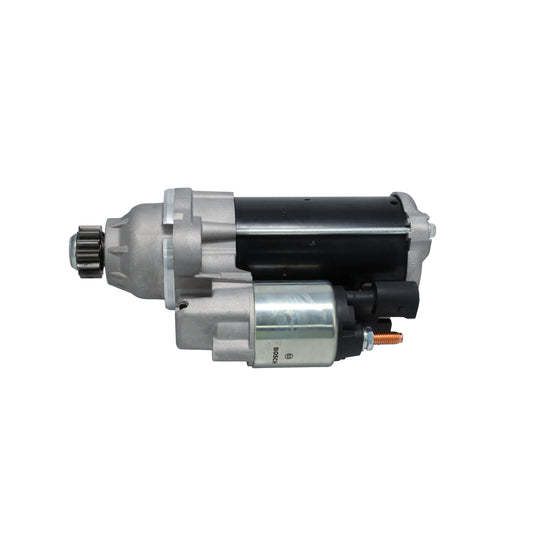

Bosch 1 986 S00 884 Starter. Part no. 1-986-S00-884. Check specifications, vehicle fitment and references below.
Specifications
Length
229 | mm
Voltage
12 V
Rated Power
1.5 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
13
Clamp
30,50
Flange Diameter
79 mm
Rotation Direction
Anticlockwise rotation
Pinion Rest Position
61.6 mm
Starter Type
Floating pinion
Bore Diameter
12.5 mm
Bore Diameter 2
12.5 mm
Bore Ø 3
12.5 mm
Position/Degree
links
Mounting Angle
43 degrees
Mounting bore angle measurement
43 degree
Shipping details
Weight
3.956 Kg
Customs Code
851140
Country of Origin
China
OE Numbers
| AUDI | 02M 911 024 Q |
|---|---|
| SEAT | 02M 911 024 Q |
| SKODA | 02M 911 024 Q |
| VW | 02M 911 024 Q, 02M 911 024 QX |
Cross-Reference Numbers
| AUDI | 02M 911 024 Q |
|---|---|
| BOSCH | 0 001 179 500, 0 001 179 501, 0 001 179 512, 0 001 179 513, 0 986 029 140, SR0795N |
| SEAT | 02M 911 024 Q |
| SKODA | 02M 911 024 Q |
| VW | 02M 911 024 Q, 02M 911 024 QX |
