Bosch
1 986 S00 992 Starter
SKU / part number

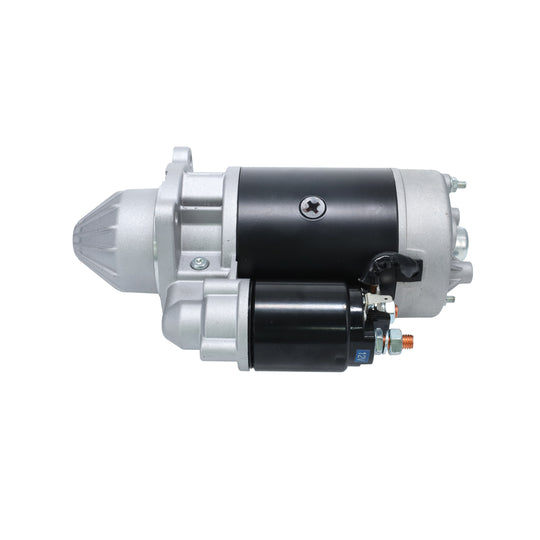

Bosch 1 986 S00 992 Starter. Part no. 1-986-S00-992. Check specifications, vehicle fitment and references below.
Specifications
Length
294 | mm
Voltage
12 V
Rated Power
2.7 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
9
Clamp
30,50
Flange Diameter
89 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
28 mm
Starter Type
Self-supporting
Bore Diameter
11 mm
Bore Diameter 2
11 mm
Bore Ø 3
11 mm
Position/Degree
links
Mounting Angle
37 degrees
Jaw opening angle measurement
37 Degree
Mounting bore angle measurement
37 degree
Shipping details
Weight
10.535 Kg
Customs Code
851140
Country of Origin
China
OE Numbers
| ACKERMANN | DRS0990, DRS1060, DRS1140, DRS1143, DRS1200, DRS3680 |
|---|---|
| BMW | 12 41 7 754 662 |
| BOMAG | 057 109 01, 057 109 05, 057 109 17, 057 109 19, 057 109 23, 057 109 27, 057 109 91, 057 109 92, 057 198 97 |
| CASE IH | V 941501, V941501EX |
| CLARK | 6005030686 |
| DAF | 1516652R, 1516667R |
| DEUTZ | 1178686, 2934694, 713594182 |
| FENDT | G 380 900 060 010, G380900060, X830100001, X830100007 |
| HANOMAG | 114939706 |
| INTERNATIONAL HARVESTER | V941501, V941501EX |
| IVECO | 1173240, 1174166, 1178026, 42522733 |
| LIEBHERR | 610 40 24, 610 71 08 |
| MAGIRUS-DEUTZ | 01161384, 01163669, 01163738, 01163758, 01164668, 01164994, 01164995, 01170052, 01173240, 01174166, 01175886, 01178026, 01178686, 01179318, 01180928, 01181976, 01189319, 02919055, 116 1384, 116 3669, 116 3738, 116 3758, 116 4668, 116 4994, 116 4995, 117 0052, 117 3240, 117 4166, 117 5886, 117 8026, 117 8686, 117 9318, 118 0928, 118 1976, 118 9319, 291 9055, B13R12X4, B15R12X3, B15R12X3H7622, B28R12X4, B5R12X4H7622 |
| MWM | 6 0572 01 0 0084 |
| POCLAIN | M0041572, N0041596 |
| SAME | 01178026 |
| STEINBOCK | 017769 |
| ZETTELMEYER | 70756112 |
Cross-Reference Numbers
| ACKERMANN | DRS0990, DRS1060, DRS1140, DRS1143, DRS1200, DRS3680 |
|---|---|
| BMW | 12 41 7 754 662 |
| BOM-Prestolite | 20500762 |
| BOMAG | 057 109 01, 057 109 05, 057 109 17, 057 109 19, 057 109 23, 057 109 27, 057 109 91, 057 109 92, 057 198 97 |
| BOSCH | 0 001 230 006, 0 001 230 014, 0 001 358 027, 0 001 358 044, 0 001 358 046, 0 001 358 049, 0 001 358 073, 0 001 358 305, 0 001 359 003, 0 001 359 012, 0 001 359 027, 0 001 359 046, 0 001 359 049, 0 001 359 073, 0 001 359 078, 0 001 362 016, 0 001 362 034, 0 001 362 091, 0 001 362 305, 0 001 362 313, 0 001 362 703, 0 001 365 004, 0 001 367 004, 0 001 367 074, 0 986 010 990, 0 986 011 140, 0 986 011 143, 0 986 011 200, 0 986 013 680, 0 986 019 020, 0 986 019 547, 0 986 019 567, F 042 002 083, SR10000N, SR9981N |
| Bosch WSAC | STR2301 |
| CASE IH | V 941501, V941501EX |
| CLARK | 6005030686 |
| DAF | 1516652R, 1516667R |
| DELCO REMY | DRS0990, DRS1060, DRS1140, DRS1143, DRS1200, DRS3680 |
| DEUTZ | 1178686, 2934694, 713594182 |
| DRI | 600002092, 600002112 |
| ELECTROSTART | 250037, 250155, 250157, 250282 |
| ERA | 220011 |
| FENDT | G 380 900 060 010, G380900060, X830100001, X830100007 |
| FRIESEN | 8810990, 8811140, 8813680 |
| HANOMAG | 114939706 |
| HC-Cargo | 112071 |
| HC-PARTS | 8EA737629001, CS1130, CS114 |
| HELLA | 8EA 011 610-941, 8EA 725 962-001, 8EA 725 967-001 |
| INTERNATIONAL HARVESTER | V941501, V941501EX |
| IVECO | 1173240, 1174166, 1178026, 42522733 |
| LIEBHERR | 610 40 24, 610 71 08 |
| LUCAS ELECTRICAL | LES0038, LRS00762, LRS00921, LRS01057, LRS762 |
| MAGIRUS-DEUTZ | 01161384, 01163669, 01163738, 01163758, 01164668, 01164994, 01164995, 01170052, 01173240, 01174166, 01175886, 01178026, 01178686, 01179318, 01180928, 01181976, 01189319, 02919055, 116 1384, 116 3669, 116 3738, 116 3758, 116 4668, 116 4994, 116 4995, 117 0052, 117 3240, 117 4166, 117 5886, 117 8026, 117 8686, 117 9318, 118 0928, 118 1976, 118 9319, 291 9055, B13R12X4, B15R12X3, B15R12X3H7622, B28R12X4, B5R12X4H7622 |
| MAGNETI MARELLI | 063523623, 063523623050, 9142803, 943252071, 943252071010, 943252204, 943252204010, 943252217, MSN2053, MSR683, MSR697, MSR707 |
| MWM | 6 0572 01 0 0084 |
| POCLAIN | M0041572, N0041596 |
| SAME | 01178026 |
| STEINBOCK | 017769 |
| VALEO | 436077, 438187 |
| WAI | 17074N, 17075N, 17075R |
| ZETTELMEYER | 70756112 |
