Bosch

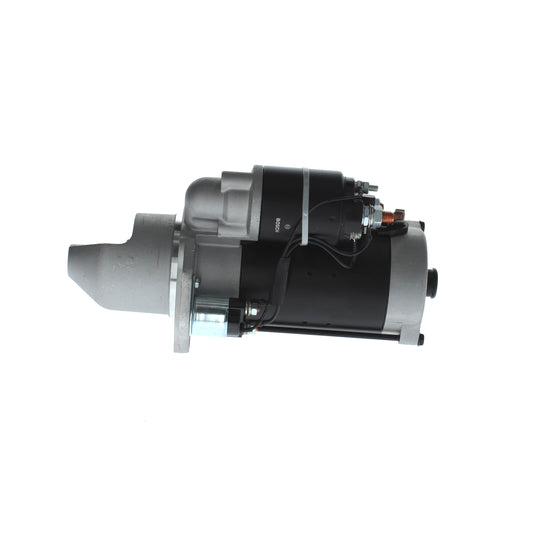

1 986 S10 040 Starter
SKU / part number
Bosch 1 986 S10 040 Starter. Part no. 1-986-S10-040. Check specifications, vehicle fitment and references below.
Specifications
Length
313 | mm
Voltage
24 V
Rated Power
4 kW
Number of mounting bores
3
Number of Teeth
10
Clamp
30,50
Flange Diameter
89 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
48 mm
Starter Type
Self-supporting
Bore Diameter
11 mm
Bore Diameter 2
11 mm
Bore Ø 3
11 mm
Position/Degree
rechts
Jaw opening angle measurement
200 Degree
Shipping details
Weight
8.459 Kg
Customs Code
851140
Country of Origin
China
OE Numbers
| CASE IH | 4892338 |
|---|---|
| CUMMINS | 4 892 338, 5 265 096 |
| IVECO | 2995986, 42498718, 4892338, 5801381129, 5801577135 |
| NISSAN | 23300LA4MA |
| TEMSA | 4892338 |
Cross-Reference Numbers
| BOSCH | 0 001 231 016, 0 001 251 009, 0 001 251 010, 0 001 263 005, 0 001 263 006, 0 001 263 021, 0 001 263 022, 0 986 020 170, 0 986 020 173 |
|---|---|
| CASE IH | 4892338 |
| CUMMINS | 4 892 338, 5 265 096 |
| DELCO REMY | DRT0170 |
| HC-PARTS | CS1268 |
| HELLA | 8EA 738 030-001 |
| IVECO | 2995986, 42498718, 4892338, 5801381129, 5801577135 |
| LUCAS ELECTRICAL | LRA02180, LRS2180 |
| MAGNETI MARELLI | 063522310160, MSN2008 |
| NISSAN | 23300LA4MA |
| TEMSA | 4892338 |
| ZEN SA | 31034 |
