Bosch

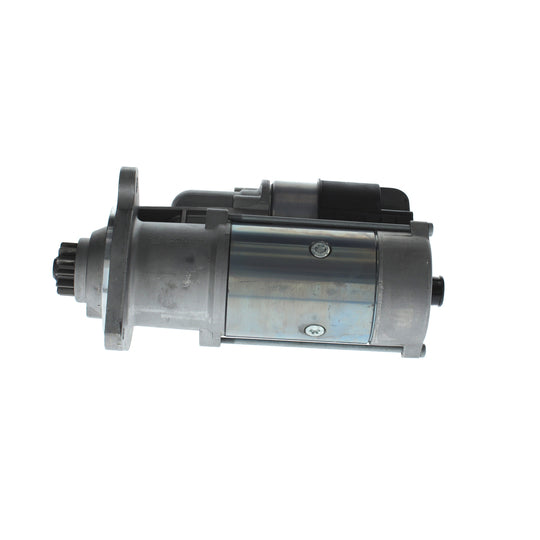

1 986 S10 045 Starter
SKU / part number
Bosch 1 986 S10 045 Starter. Part no. 1-986-S10-045. Check specifications, vehicle fitment and references below.
Specifications
Length
325 | mm
Voltage
24 V
Rated Power
5.5 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
12
Clamp
50
Clamp
30
Flange Diameter
110 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
48.2 mm
Starter Type
Floating pinion
Bore Diameter
13.5 mm
Bore Diameter 2
13.5 mm
Bore Ø 3
13.5 mm
Position/Degree
rechts
Mounting Angle
55 degrees
Mounting bore angle measurement
55 degree
Shipping details
Weight
10.265 Kg
Customs Code
851140
Country of Origin
China
OE Numbers
| DAF | 1667425, 1688625, 1739935, 1826121, 1843852, 1876369, 1956090, 2015153, 2134698, STD1418R |
|---|---|
| OTOMARSAN | 1956090, 2015153 |
| TEMSA | 1667425, 1826121 |
Cross-Reference Numbers
| BOSCH | 0 001 241 006, 0 001 241 015, 0 001 241 020, 0 001 261 007, 0 001 261 008, 0 001 261 012, 0 001 261 013, 0 001 261 044, 0 001 261 045, 0 001 261 069, 0 001 261 070, 0 001 261 085, 0 001 261 086, 0 986 022 260 |
|---|---|
| DAF | 1667425, 1688625, 1739935, 1826121, 1843852, 1876369, 1956090, 2015153, 2134698, STD1418R |
| OTOMARSAN | 1956090, 2015153 |
| TEMSA | 1667425, 1826121 |
