Bosch

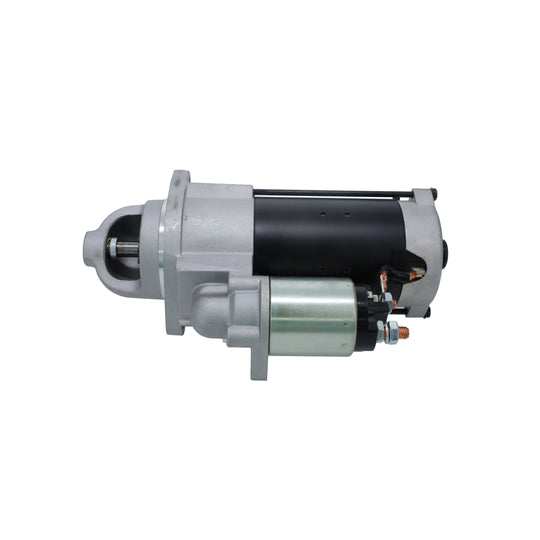

1 986 S10 074 Starter
SKU / part number
Bosch 1 986 S10 074 Starter. Part no. 1-986-S10-074. Check specifications, vehicle fitment and references below.
Specifications
Length
314 | mm
Voltage
24 V
Rated Power
4 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
10
Clamp
30,50
Flange Diameter
88.8 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
27 mm
Starter Type
Self-supporting
Bore Diameter
11 mm
Bore Diameter 2
11 mm
Bore Ø 3
11 mm
Position/Degree
rechts
Jaw opening angle measurement
205 Degree
Shipping details
Weight
8.675 Kg
Customs Code
851140
Country of Origin
India
OE Numbers
| ASHOK LEYLAND | AFLF189 |
|---|---|
| DAF | 1387383, 1387383R, 1704911 |
| LEYLAND | AELD021, AELF189, AELF405 |
Cross-Reference Numbers
| ASHOK LEYLAND | AFLF189 |
|---|---|
| BOSCH | 0 001 231 017, 0 001 231 045, 0 001 263 001, 0 001 263 002, 0 986 021 190, 0 986 021 193 |
| DAF | 1387383, 1387383R, 1704911 |
| DELCO REMY | DRT1190 |
| HC-PARTS | CS1382 |
| HELLA | 8EA 738 258-081 |
| LEYLAND | AELD021, AELF189, AELF405 |
| LUCAS ELECTRICAL | LRS02176, LRS2176 |
