Bosch

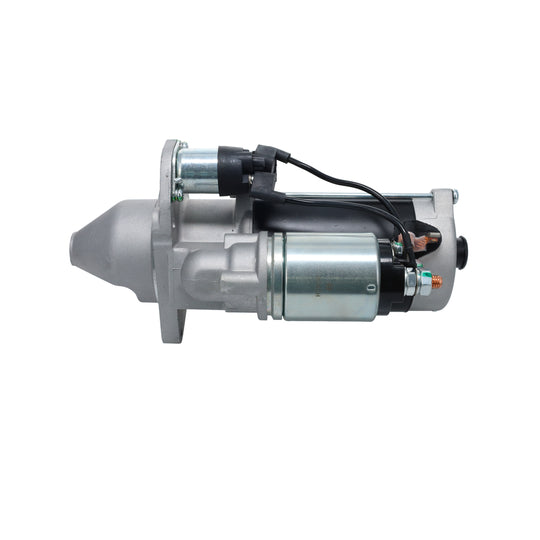

1 986 S10 077 Starter
SKU / part number
Bosch 1 986 S10 077 Starter. Part no. 1-986-S10-077. Check specifications, vehicle fitment and references below.
Specifications
Length
316 | mm
Voltage
24 V
Rated Power
4 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
11
Clamp
30,50,51
Flange Diameter
89 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
28 mm
Starter Type
Self-supporting
Bore Diameter
10.5 mm
Bore Diameter 2
10.5 mm
Bore Ø 3
10.5 mm
Position/Degree
links
Mounting Angle
30 degrees
Jaw opening angle measurement
20 Degree
Mounting bore angle measurement
30 degree
Shipping details
Weight
8.513 Kg
Customs Code
851140
Country of Origin
China
OE Numbers
| DAF | 0910428 |
|---|---|
| MAN | 51 26201 7193, 51 26201 7222 |
| TEMSA | 51262017222 |
Cross-Reference Numbers
| BOSCH | 0 001 231 023, 0 001 231 034 |
|---|---|
| DAF | 0910428 |
| MAN | 51 26201 7193, 51 26201 7222 |
| SEG AUTOMOTIVE | T001000068 |
| TEMSA | 51262017222 |
| ZEN SA | 35012 |
