Bosch

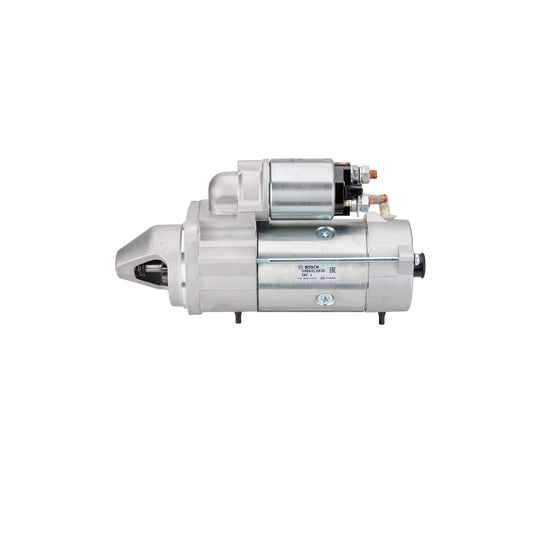

1 986 S10 079 Starter
SKU / part number
Bosch 1 986 S10 079 Starter. Part no. 1-986-S10-079. Check specifications, vehicle fitment and references below.
Specifications
Length
317 | mm
Voltage
24 V
Rated Power
4 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
9
Clamp
30,50
Flange Diameter
89 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
28.1 mm
Starter Type
Self-supporting
Bore Diameter
11 mm
Bore Diameter 2
11 mm
Bore Ø 3
11 mm
Position/Degree
links
Mounting Angle
51 degrees
Jaw opening angle measurement
39 Degree
Mounting bore angle measurement
51 degree
Shipping details
Weight
8.881 Kg
Customs Code
851140
Country of Origin
China
OE Numbers
| BOMAG | 057 109 03 |
|---|---|
| DAF | 1516768R |
| FAUN | 1701 065 |
| HANOMAG RHEINSTAHL | 114939702 |
| IVECO | 1173241, 42522641 |
| LIEBHERR | 620 06 62 |
| MAGIRUS-DEUTZ | 01161422, 01164995, 01170053, 01173241, 01180804, 01182235, 01302023, 116 1422, 116 4995, 117 0053, 117 3241, 118 0804, 118 2235, 130 2023, B17R24X4, B29R24X4H7622, B7R24X4H7622 |
| O&K | 744 648 |
| POCLAIN | E0041565 |
| SNVI | 0001115485, 0001115489, 0001115490 |
| VOLVO | 6209190 |
Cross-Reference Numbers
| BOMAG | 057 109 03 |
|---|---|
| BOSCH | 0 001 231 028, 0 001 263 051, 0 001 263 052, 0 001 360 003, 0 001 360 012, 0 001 360 014, 0 001 360 035, 0 001 368 001, 0 001 368 088, 0 986 011 270 |
| DAF | 1516768R |
| DELCO REMY | 19024226, 1902423, 19024255, 19024268, 19024813, DRS1270 |
| FAUN | 1701 065 |
| HANOMAG RHEINSTAHL | 114939702 |
| HC-Cargo | F 032 110 523 |
| HELLA | 8EA 012 586-441 |
| IVECO | 1173241, 42522641 |
| LIEBHERR | 620 06 62 |
| MAGIRUS-DEUTZ | 01161422, 01164995, 01170053, 01173241, 01180804, 01182235, 01302023, 116 1422, 116 4995, 117 0053, 117 3241, 118 0804, 118 2235, 130 2023, B17R24X4, B29R24X4H7622, B7R24X4H7622 |
| O&K | 744 648 |
| POCLAIN | E0041565 |
| SNVI | 0001115485, 0001115489, 0001115490 |
| VOLVO | 6209190 |
