Bosch

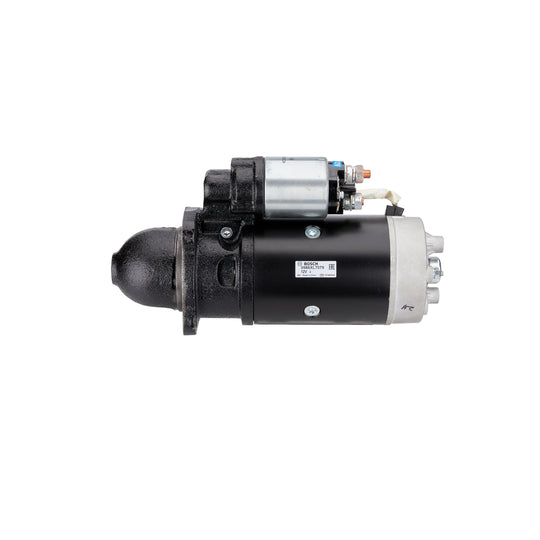

1 986 S10 082 Starter
SKU / part number
Bosch 1 986 S10 082 Starter. Part no. 1-986-S10-082. Check specifications, vehicle fitment and references below.
Specifications
Length
341 | mm
Voltage
12 V
Rated Power
3 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
10
Clamp
30,50
Flange Diameter
89 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
29.5 mm
Starter Type
Self-supporting
Bore Diameter
10.5 mm
Bore Diameter 2
10.5 mm
Bore Ø 3
10.5 mm
Position/Degree
rechts
Mounting Angle
30 degrees
Jaw opening angle measurement
120 Degree
Mounting bore angle measurement
30 degree
Shipping details
Weight
13.343 Kg
Customs Code
851140
Country of Origin
China
OE Numbers
| CLARK | 3737270 |
|---|---|
| DAF | 504786 |
| HOLDEN | 700719635 |
| O&K | 598 012 |
| PERKINS | 2873 D 201, 2873 D 202 |
| VOLVO | 481034 |
Cross-Reference Numbers
| BOSCH | 0 001 359 088, 0 001 367 017, 0 001 367 076, 0 986 017 750 |
|---|---|
| CLARK | 3737270 |
| DAF | 504786 |
| DELCO REMY | 19024261, DRS7750 |
| HELLA | 8EA 737 585-001 |
| HOLDEN | 700719635 |
| LUCAS ELECTRICAL | LRS01075, LRS1075 |
| MAGNETI MARELLI | 943352256 |
| O&K | 598 012 |
| PERKINS | 2873 D 201, 2873 D 202 |
| VOLVO | 481034 |
