Bosch

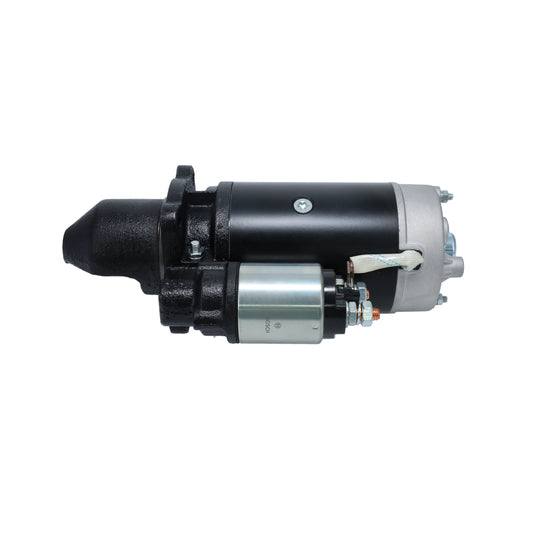

1 986 S10 084 Starter
SKU / part number
Bosch 1 986 S10 084 Starter. Part no. 1-986-S10-084. Check specifications, vehicle fitment and references below.
Specifications
Length
341 | mm
Voltage
24 V
Rated Power
4 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
9
Clamp
30,50
Flange Diameter
89 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
48 mm
Starter Type
Self-supporting
Bore Diameter
10.9 mm
Bore Diameter 2
10.9 mm
Bore Ø 3
10.9 mm
Position/Degree
links
Jaw opening angle measurement
0 Degree
Shipping details
Weight
13.621 Kg
Customs Code
851140
Country of Origin
China
OE Numbers
| DAF | 1516825R |
|---|---|
| SCANIA | 1404788, 183868, 263356, 310563, 369554, 571166, 571420, 571450, 571451 |
| STEYR | 61200090091 |
| VOLVO | 6226486, 6233004 |
Cross-Reference Numbers
| BOSCH | 0 001 360 010, 0 001 360 038, 0 001 368 010, 0 001 368 301, 0 986 011 280, 1 986 S00 067, F 032 CS0 097 |
|---|---|
| DAF | 1516825R |
| DELCO REMY | 19024274 |
| MAGNETI MARELLI | 943252207010 |
| MONARK | 81360038, 81388010 |
| SCANIA | 1404788, 183868, 263356, 310563, 369554, 571166, 571420, 571450, 571451 |
| STEYR | 61200090091 |
| VOLVO | 6226486, 6233004 |
