Bosch

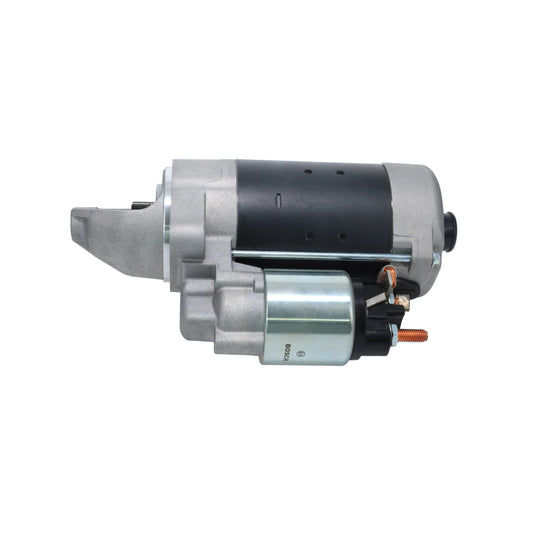

1 986 S10 086 Starter
SKU / part number
Bosch 1 986 S10 086 Starter. Part no. 1-986-S10-086. Check specifications, vehicle fitment and references below.
Specifications
Length
249 | mm
Voltage
12 V
Rated Power
2.3 kW
Number of mounting bores
1
Number of threaded holes
1
Number of Teeth
9
Clamp
30,50
Flange Diameter
74 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
26 mm
Starter Type
Self-supporting
Thread Size
M10x1,5
Bore Diameter
11.2 mm
Position/Degree
links
Mounting Angle
36 degrees
Jaw opening angle measurement
139 Degree
Mounting bore angle measurement
36 degree
Shipping details
Weight
5.029 Kg
Customs Code
851140
Country of Origin
China
OE Numbers
| AUDI | 057 911 023 E |
|---|---|
| VW | 057 911 023 E, 057 911 023 EX |
Cross-Reference Numbers
| AUDI | 057 911 023 E |
|---|---|
| BOSCH | 0 001 223 018, 0 001 223 019 |
| VW | 057 911 023 E, 057 911 023 EX |
