Graf

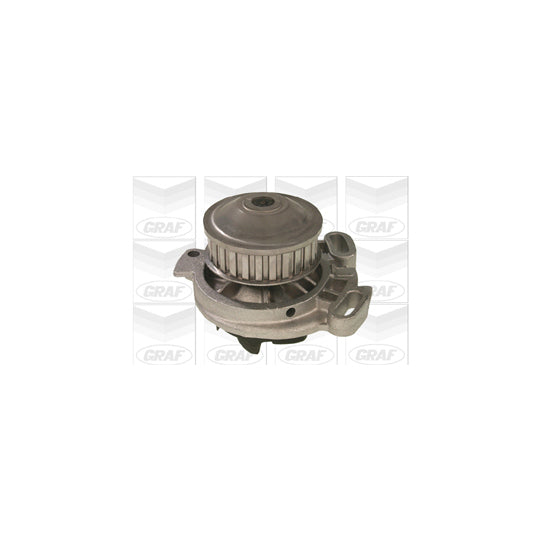

PA103 Water pump
SKU / part number
Graf PA103 Water pump. Part no. PA103. Check specifications, vehicle fitment and references below.
Specifications
Number of Teeth
26
Operating Mode
Mechanical
Supplementary Article/Supplementary Info
do not use sealant
Supplementary Article/Supplementary Info 2
with seal ring
Number of blades/vanes
5
Water Pump Pulley Diameter
77.34 mm
Impeller Diameter
72.5 mm
Water Pump Type
for toothed belt drive
Water pump impeller material
Metal
Shipping details
Weight
1.33 Kg
Customs Code
841330
Country of Origin
Italy
Cross-Reference Numbers
| ACDelco | 252-645 |
|---|---|
| ADVANCE | T1091 |
| AIRTEX | 1194, AW9052, WP-665, WPA-1194 |
| AISIN | WE-VW60 |
| AKRON-MALÒ | 130045 |
| ASHIKA | 35-00-0942 |
| AUDI | 035 121, 004, 004A, 004AV, 004AX, 005B, 005C, 005E |
| BECK/ARNLEY | 131-1532, 131-1942 |
| BERTOLOTTI | WFP7149 |
| BGA | CP2388 |
| BOSCH | 96048 |
| BUGATTI | PA0316 |
| CAR | 330534 |
| CARDONE | 5583612 |
| CARQUEST | 51-1908 |
| CONTINENTAL CTAM | WP6062 |
| DAYCO | DP003 |
| DELPHI | WP1096 |
| DOLZ | A152 |
| Duralast | BWP-665 |
| EASTERN COACH WORKS | 18-011 |
| FEBI BILSTEIN | 01073 |
| FIRST LINE | FWP1108 |
| FRECCIA | WP0322 |
| GATES | 42341, WP0020 |
| GEBA | 2050 |
| GGT | PA10145 |
| GK | 980145 |
| GMB | 180-1100, GWVW-10A |
| GNS | YH-AU124, YH-SK127, YH-V105 |
| GP | PA122, PA351/R |
| GUTTMANN | 20115 534, 10 |
| HEPU | P526 |
| IDROMEC | PA31005 |
| INTERBRAKE | VW005 |
| JAPANPARTS | PQ-0942 |
| JAPKO | 350942 |
| KWP | 10103 |
| LPR | WP0474 |
| MAGNETI MARELLI | 352316171167 |
| MAPCO | 21714 |
| METELLI | 24-0103 |
| MEYLE | 1130120012 |
| NAPA | 42341, NWP1006 |
| NK | 10847018 |
| OPTIBELT | WP1055 |
| OPTIMAL | AQ-1033 |
| PART MASTER | 2-665 |
| QH Benelux | WP3905 |
| QUINTON HAZELL | QCP2226 |
| RHIAG | WP377P |
| RUVILLE | 65440 |
| SALERI | PA377P |
| SASIC | 9001095 |
| SKF | PC665, VKPC81605 |
| STARLINE | 20144005S, VPSK127 |
| SWAG | 32150002, 60150020 |
| Schaeffler INA | 538012710 |
| TEMOT | 85-1640 |
| TRISCAN | 860029392 |
| TRW | FP1660, FP7149 |
| UNIPART | GWP1057 |
| US MOTOR | US9052 |
| VALEO | 506190 |
| VW | 035 121, 004, 004A, 004AV, 004AX, 005B, 005C, 005E |
