Hella

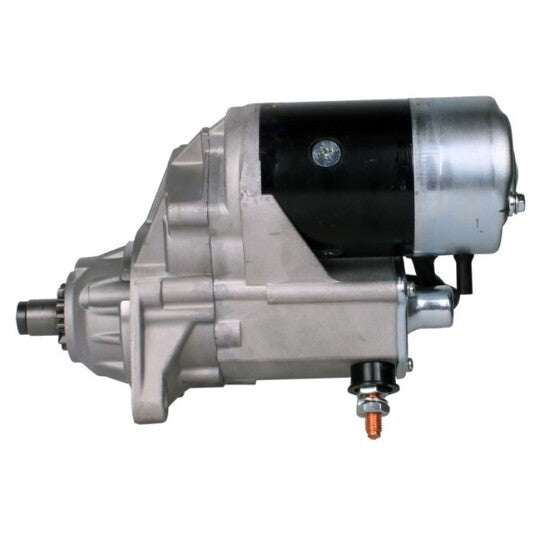

8EA 012 586-001 Starter
SKU / part number
Hella 8EA 012 586-001 Starter. Part no. 8EA-012-586-001. Check specifications, vehicle fitment and references below.
Specifications
Voltage
24 V
Rated Power
4.5 kW
Number of mounting bores
3
Pinion Rest Position
50 mm
Number of Teeth
10
Rotation Direction
Clockwise rotation
Flange Diameter
89 mm
Trade Numbers
CS1383
Shipping details
Weight
8.516 Kg
Customs Code
851140
Country of Origin
China
Cross-Reference Numbers
| ARTEC | 48212277 |
|---|---|
| ATL Autotechnik | A 78 210 |
| BOM-Prestolite | 20540102 |
| BOSCH | 0 986 022 940, 0 986 022 940 090, 0 986 022 941, 1 986 S10 067 |
| BV PSH | 501.507.103, 501.507.103.050, 501.507.103.260, 501.507.103.265, 501.507.103.670 |
| Bosch WSAC | F 042 S00 117, STR-6183 |
| CASCO | CST40601 |
| DELCO REMY | 8200242, DRS3899, SER85004-12B1 |
| DENSO | 228000-5640, 228000-5641, DSN939 |
| ELSTOCK | 45-3259 |
| ERA | 220480A |
| EUROTEC | 11090122 |
| FEBI BILSTEIN | 175637 |
| FIAT | 99432760 |
| HC-Cargo | 112822, 115880, F 032 112 822 |
| HELLA | 012 586-001, 012586001, 8EA 738 258-111 |
| IVECO | 228000-5641, 2995138, 99432760 |
| LUCAS ELECTRICAL | LRS01957 |
| MAHLE | MS 769 |
| MITSUBISHI | M008T61671, M8T61671 |
| MONARK | 081 776 760 |
| PowerMax | 8212277, 88212277 |
| VALEO | 203064, 460262 |
